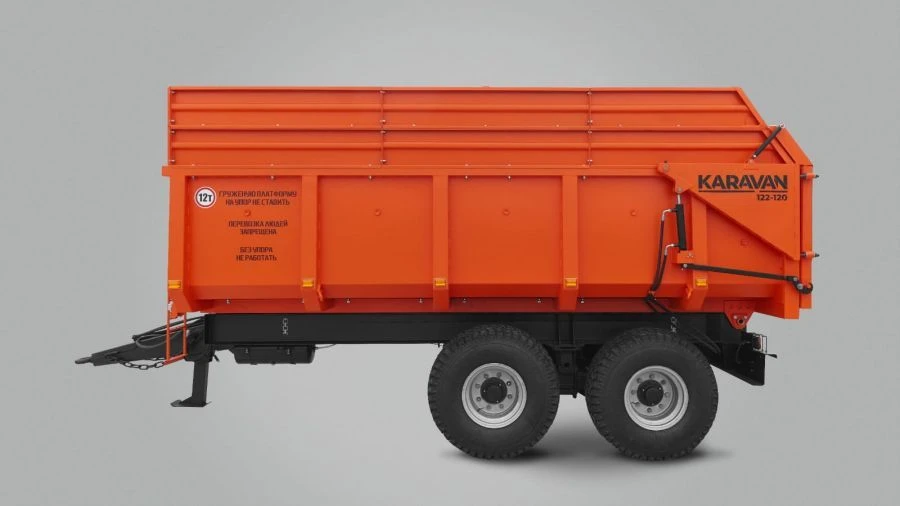

Agricultural Tractor Dump Semi-Trailer Type 122, Model 122120-00 for Efficient Transport

Cargo capacity 12 tonnes Curb weight, kg 4140 Body steel thickness, mm 3 Nature of transported cargo Agricultural, loose, construction cargo GVW, kg not more than 16140 Dimensions, without extension boards, mm 6530x2550x2290 Dimensions, with extension boards of I/II rows, mm 6530x2550x2290/2890 Body volume, m3 12/15.5/19 Internal dimensions of the body, mm 5000x2264x1060 Internal dimensions of the body with extension boards, mm 5000?2264?1370/1680 Back unloading Spring suspension, balancer suspension Tyre size 16,5/70-18 NS10 KF97 Working pressure in tyres, MPa (kgf/cm2) 0,37(3,7) Type of working brake system pneumatic single conduit system Type of parking brake mechanical with manual drive Electrical equipment, V 12, powered from the tractor Tractor - wheeled tractor 2-3 class from 140 l/sec Tipping angle of the platform up to, deg 50
