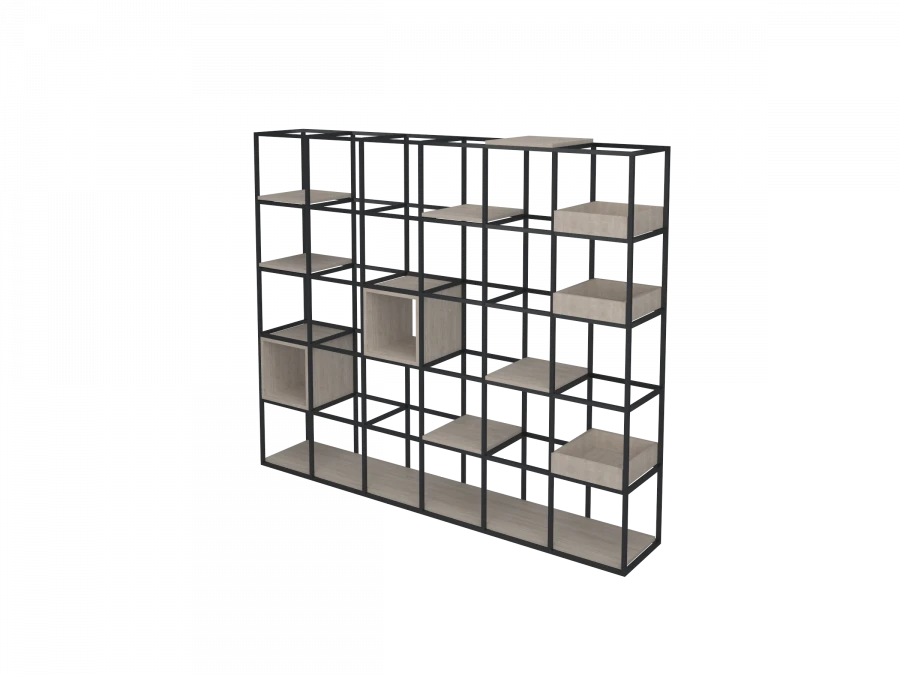

Agat 01.05.04 Modular Shelving Unit for Efficient Storage

Size: 2300x400x1930. Collapsible frame is made of profile pipe 20x20x1,5mm. The frame consists of parts: 1) The connecting shelf - is a tube 20x20 length 360mm one hole at both ends diameter 10.5mm 2) The shelf "A" is installed around the perimeter of the base of the rack - tube 20x20 length 360mm with two holes at both ends diameter 10,5 and two holes under the rivet thread m6 for installation of the adjustable support 3) Strip "B" is installed in the base of the rack inside - tube 20x20 length 360mm with two holes at both ends diameter 10,5 for the set screw and two holes under the rivet thread m6 for installation of the adjustable support.

4) Aluminium brackets, adapters connecting all the slides. Brackets of 4 types are inserted inside the skid - tube 20x20 and is drawn through the threaded hole in the bracket and skid Complete with shelf 356h398h16 -12pcs, drawer 356h398h120 -4pcs, cube 356h398h358 -2pcs. Shelves, drawers and cubes made of LDFP 16mm.
