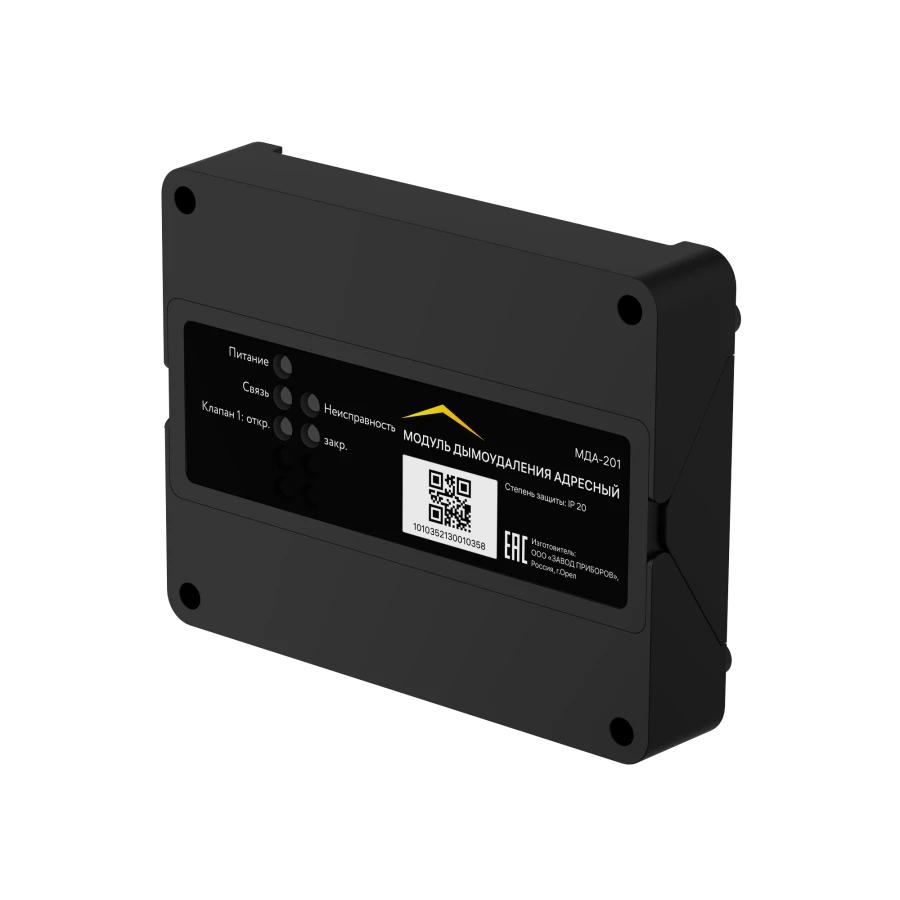

Addressable smoke exhaust module MDA-201-1 "RUBETEK"

Fire Safety Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Addressable smoke exhaust module MDA-201-3 "RUBETEK" Addressable smoke exhaust module MDA-201-2 "RUBETEK"

MDA is designed for controlling electromechanical actuator with return spring, or electromechanical reversible actuator, or electromagnetic actuator with manual return, which are used on dampers of smoke exhaust damper or fire damper. MDA is designed for indoor installation, in places protected from atmospheric precipitation, aggressive media and dust, as well as in especially explosion and fire hazardous premises.

Technical Specifications

Power supply from AC mains with frequency (50±1) Hz voltage	230 V
Power supply from a DC source with voltage	24 V
Communication interface	PLS.
Number of address slots occupied	1 pc
Peak current consumption from the PLC	0.006 A
Average current consumption from the PLC	0.00093 A
Current consumption of the executive part from the external power supply when switching 24 V	0.035 A
Current consumption of the executive part from external power supply at switching 230 V	0.01 A
Switching current at voltage 24 V, not more than	1.5 A
Switching current at voltage 230 V, not more than	1.5 A
Maximum switchable current of remote control and OPC valves	2 A
Types of valves to be connected	Electromagnetic; reversible; with return spring
Number of remote control valves, OPC valves controlled by the module	1 pc
Monitoring of power lines for open circuits and short circuits	Got it
Tamper switch (tamper switch)	Got it
Availability of built-in PLC isolator	Got it
Number of devices connected to one PLC, max.	SBVVBG pc
Operating temperature range	-25...55 °C
Relative humidity at + 40 deg. ?	0...93 %
Degree of enclosure protection	IP20
Dimensions (L x W x H), mm	160x125x36
Weight, not more	270 g
Average service life	10 a
Average MTBF	60000
Probability of failure-free operation in 1000 h	0.98

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
