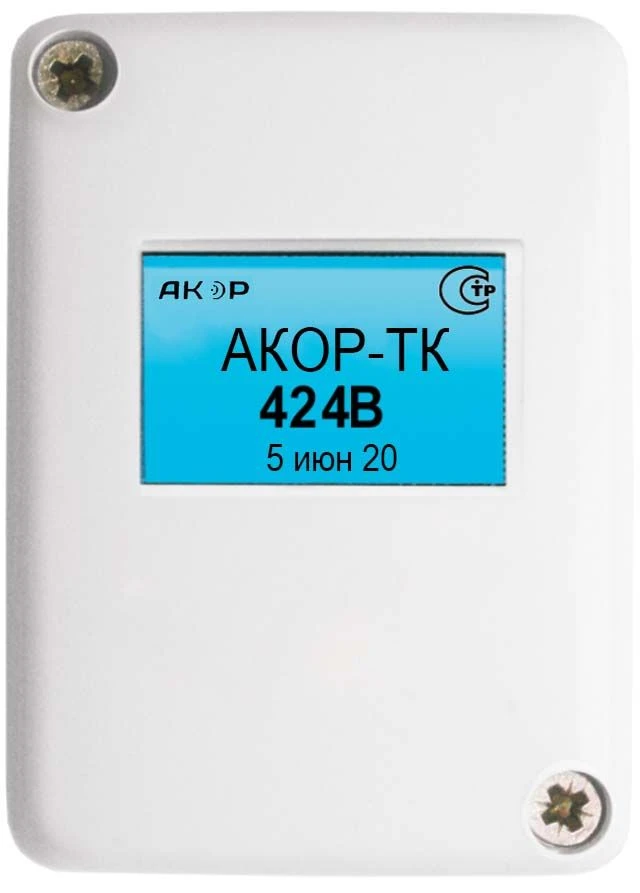

Addressable module AKOR-TK

Fire Safety Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Module addressable AKOR-TK (Addressable Label) is designed to address fire and fault notifications from non-addressable fire detectors with normally closed contact output or notifications from sensors monitoring engineering systems when working as part of the alarm system "AKOR 496M"

Specifications

. Type of climatic execution UHL Z.1

. Degree of protection of the shell IP41

Informativeness 6 ("Normal", "Attention", "Fire", "Loop break", "Loop short circuit", "No communication")

Resistance of the signalling loop, not more 54 ohm

Number of fire detectors, not more 20 pc

Time of fixation of messages, not less than 300

Overall dimensions in the housing, not more than 75x55x33 mm

Weight in the case, not more 0.1 kg
