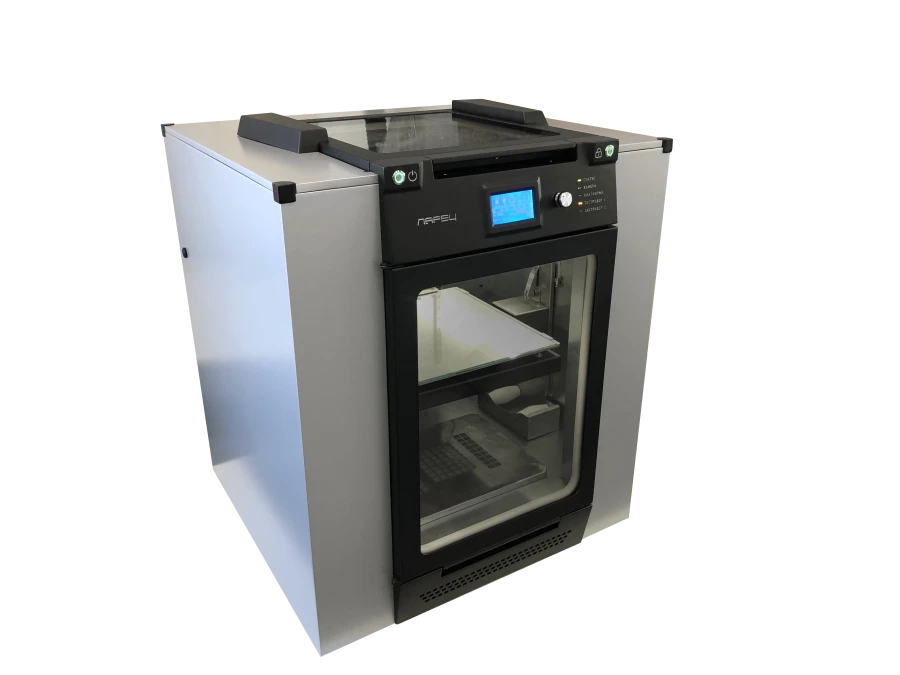

Additive Manufacturing System "Larets" SM-A284 3D Printer for Precise Object Creation
Manufacturer:
KBSM OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The additive machine "Larets" SM-A284 is a device designed to build physical objects corresponding to the work task by means of layer-by-layer application of thermoplastic materials, mainly refractory polymers
Specifications
XYZ axis drive motors
Stepper motors (nema 17 - 0.9°)
Warranty
B1/B8 2100/900 MHz
Power supply
220 V
Power supply
SBVVBG
Software
open floor (cura, repetier-host)
Case
closed, thermally insulated, double glazed door and hatch.
Print Platform Calibration
automated
Printed platform material
Aluminum
Number of extruders
2 pcs
Maximum print bed temperature
180 °C
Maximum extruder temperature
500 °C
Maximum background temperature of the working chamber
130 °C
Extruder unit cooling
water
Height
655 mm
Width
655 mm
Length
785 mm
Power consumption
peak-2 kw, average consumption 500 watt
Volume of printing area, mm
300x300x300 mm
Printing technology
fdm
Printing material feeding mechanism
remote supply
Loading print material
automated
Placement of print material
inner (with function of material drying) outer (for oversized coils)
Positioning accuracy, µm
SBVVBG
Plastic diameter
1,75 mm, (2,85 mm on request)
Print speed, mm/sec
Up to 120 mm/sec
Safety
Blocking access to camera during printing
Material type
peek, ultem, ppsu, pa/cf, pc, pa, abs, carbon, metal-filled, fiberglass-filled, asa, petg, esd-safe, hips, tpu, pla
Interfaces
sd card, usb, wi-fi, ethernet
Layer thickness
from 50 µm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
