Active Control Remote KR-61C - 6 Buttons, GPI Signals

Available for Import

Active Control Remote KR-61C for Device Management via GPI Signals

Standalone Communication Devices

Manufacturer: LES-TV LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

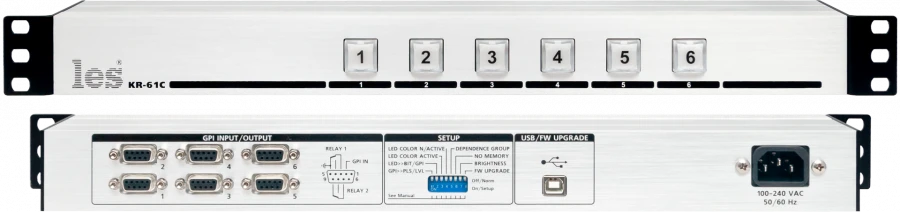

The console is designed to control external devices using GPI signals, has 6 buttons on the front panel, the back panel has DB9F, USB and 8-position DIP-switch connectors. Each DB9F connector corresponds to a different control channel and includes: two relay switching groups (fully isolated and with grounded switching contact), one GPI input signal. The USB connector is used for remote control and configuration of the remote control from a PC. DIP-switch is used for local setting of operating modes. The control buttons have the possibility to change the inscription, backlight colour and to install a protective hinged cover. The warranty period is 24 months.

Specifications

Number of control buttons

6 pcs

Number of GPI IN/OUT connectors

6 pcs

GPI connector type

DB9F

Maximum permissible load of GPI output relay contact groups

30 V

Maximum permissible load of GPI output relay contact groups

0.5 A

GPI input threshold for GPI input signals

1.4 V

Number of USB connectors

1 pcs

USB connector type

USB type B

AC mains supply voltage

100...240 V

Power consumption from AC mains, no more than

6 W

Operating temperature range

5...40 °C

Overall dimensions excluding connectors (W - H - D)

483...44 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
