Acoustic Transducer STC-H721.02 with Pre-Amplifier for Industrial Applications

Audio and Video Parts

Manufacturer: CRT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

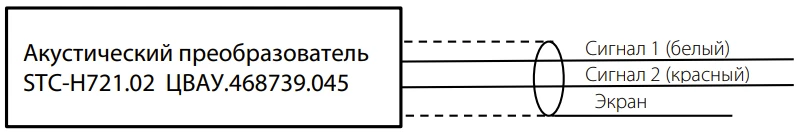

Acoustic transducer STC-H721.02, CVAU.468739.045 is a product with a preamplifier, made in a sealed metal case for professional non-domestic use. It is designed to convert air sound vibrations into electric current vibrations and to amplify the electric signal modulated by sound for its transmission through a two-wire cable line to the line inputs of audio equipment. Power supply of the built-in preamplifier of the STC-H721.02 product is carried out by direct current voltage of 12±2V from an external power supply.

Specifications

AC output (undistorted) voltage (effective) when operating on 600 Ohm load

0.4...0.5 ohm

AC output impedance

50...70 ohm

Sensitivity of AP with standard sound conductor, mV/Pa

300...400

AC power supply voltage is supplied by DC voltage

Armoured glass

Operating frequency range

200...6500

Type of acoustic transducer

Electret

Unevenness of the frequency response with the sound conductor in the specified operating frequency range

6...21
