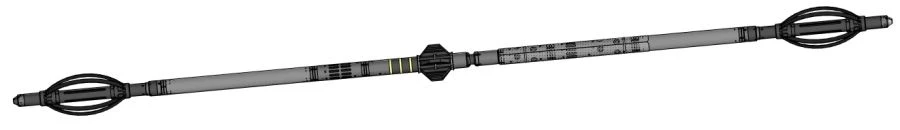

Acoustic Cement Tester KVARC-90 for Well Logging

Available for Import

Acoustic Cement Tester KVARC-90 for Efficient Well Logging Applications

Geophysical Instruments

Manufacturer: PJSC TATNEFT im. V.D. Shashina

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Logging wave acoustic multi-frequency cementometer KVARTS-90 is designed to identify vertical channels in wells between the string and cement stone, between cement stone and rock, with an openness of at least 15 degrees, in oil and gas wells. The equipment provides registration of acoustic wave fields excited by a monopole radiator operating in multi-frequency mode depending on the goals and objectives of the study. Registration of acoustic signal is carried out by groups of receivers, in 8 sectors located at 45 degrees around the perimeter of the device.

Specifications

Power consumption

30 W

Power supply voltage

220 V

Weight of downhole tool, not more

Flat grinder, Specialised grinder kg

Length

5290 mm

Diameter

Flat grinder, Specialised grinder mm

Operating temperature range

0...105 °C

Maximum hydrostatic pressure

60 MPa

Maximum logging speed

350

Transmission speed

166

Depth quantization step

10 cm

Dynamic range of wave signal registration

108

Adjustment range of acoustic signal amplifiers' CG adjustment

1...16 pcs

ADC digit capacity

14 pcs

Radiation frequency

1...22

Time quantization step

Acoustic signal recording time

1024

Tolerance limits of basic relative errors of measurement T

-3...3 %

Measurement range of T longitudinal waves, µs/m

120...660

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
