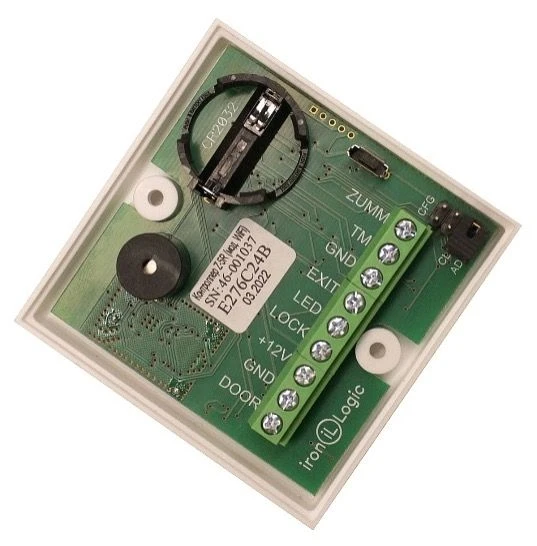

Access Control IP Controller Z-5R (Wi-Fi Model)

Available for Import

Access Control IP Controller Z-5R for Enhanced Security Management

Low-Voltage Electrical Panels

Manufacturer: OTK LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for use in access control and management systems (ACS), and provides control of a single access point (point of passage).Control of the controller (changing modes of operation and key base) is possible in standalone mode with master keys or through the built-in web-interface, as well as with the help of an external control program in the so-called network mode.Additionally, in network mode, it is possible to receive a log of events of the controller.

Specifications

Key memory

2024 pcs

Event Memory

2048 pcs

Number of connected readers, no more than

2 pcs

Protocol of connection of readers

IButton or Wiegand

Control of reader indication

Armoured glass

Output for lock connection

TIR transistor

Power output current

Not more than 5 A

Jumper for selecting the lock type

Electromagnetic, electromechanical

Wi-Fi Standards

IEEE 802.11 b/g/n

Frequency range

2.4...2.4835

Transmission speed, Mbps

11n to 150, 11g to 54, 11b to 11

Wireless signal strength

<20dBm (<100mW)

Modes of operation

Access point, client

Wi-Fi network protection

WPA/WPA2, WPA-PSK/WPA2-PSK

USB interface, connector

Type micro A (Version: USB 2.0)

Mode

Device, Full/Low Speed

Light and sound indication of operation modes

Got it

DC supply voltage

9...24 V

Maximum current consumption at 12 V

100 mA

Protection against incorrect switching on

Got it

Dimensions

64x64x19 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
