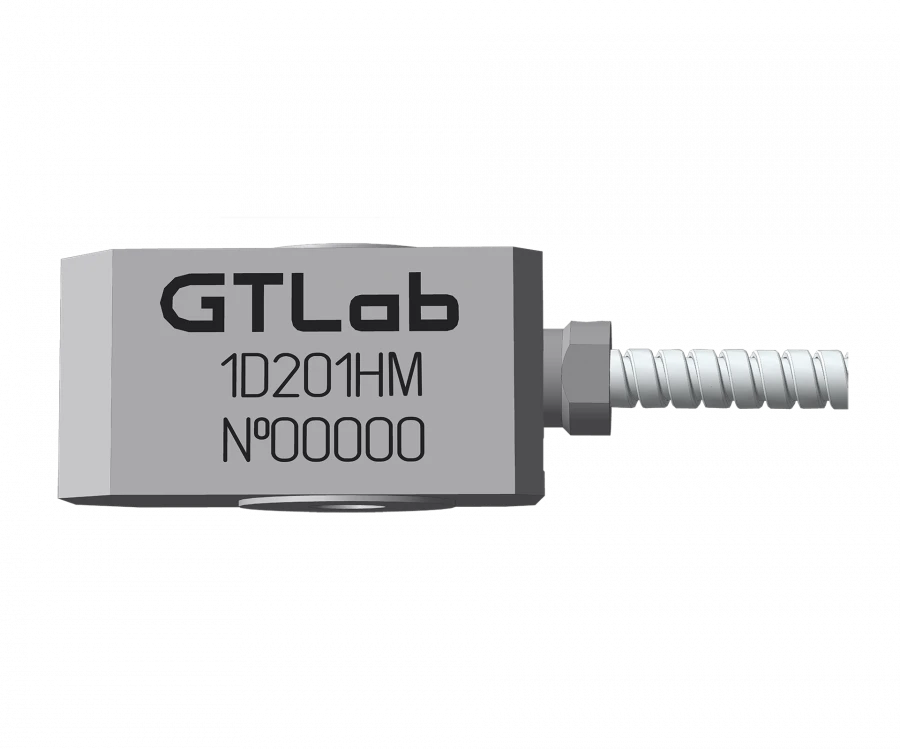

Accelerometer 1D201HM
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Digital three-component MEMS accelerometers 1D201HM with RS485 output.
Specifications
Housing material
stainless steel
VHF
2, 3, 5, 10 Hz (user adjustable)
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Measured amplitude range of vibration accelerations
0 ...100 m/s2; 0 ...200 m/s2; 0 ...400 m/s2 (user adjustable)
Measurement mode
vibration acceleration, vibration velocity, vibration displacement
Detector
Swing, Peak, RMS
Measured temperature range of the integrated sensor (± 2 °C)
- 40 ... +85°?
LF
200,500,1000 Hz (user adjustable)
Operating frequency range - frequency response unevenness ± 3 dB
2 ...1 000 Hz; 3 ...1 000 Hz; 5 ...1 000 Hz; 10 ...1 000 Hz (user adjustable)
Maximum impact (peak)
± 1,000 m/s2
Relative transverse conversion ratio
< 5%
Operating temperature range
- 40 ... +85°?
Output
RS-485, Modbus RTU protocol
Supply voltage ± 10 %
+ (5 ... 12) ?
Consumption current
? 20 mA
Number of measuring axes
3 (x, y, z)
Weight
160 ?
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
