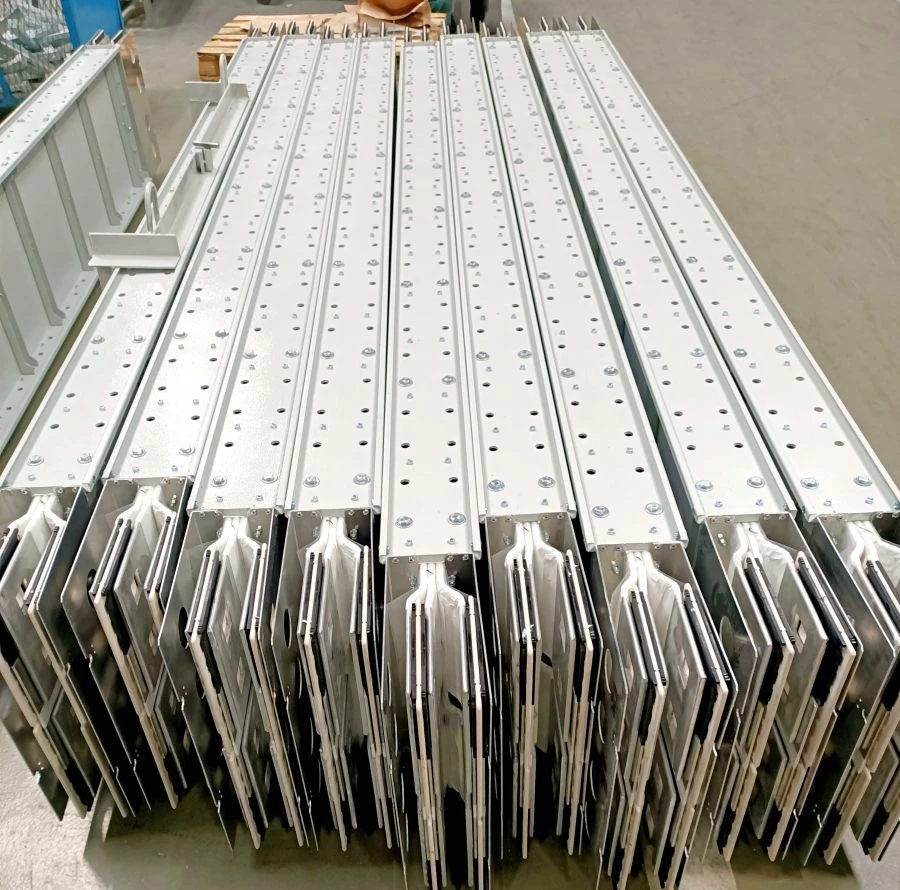

AC Busbar System 1000-5000A IP55 (IP65) for Efficient Power Distribution

Electrical Circuit Protection

Manufacturer: SOEMI OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The four-wire four-wire aluminium AC busbars SHMA 4 (3L+PEN(50/100%) + housing(AI/Fe) and five-wire SHMA 5 (3L+N(100/200%)+PE(50/100%)+ housing(AI/Fe) are designed for operation in industrial, commercial, administrative buildings; at infrastructure facilities; in multi-storey and multifunctional buildings in electrical networks of three-phase current with frequency of 50 and 60 Hz at voltage up to 1000 V. In terms of electrical characteristics, technical performance and functional purpose of the busbar SOEMI is not inferior to world analogues, and in some aspects it has no equals.

Specifications

Cross section of the phase conductor

5100 mm²

Length of straight sections

3 m

Number of conductors

Branch pitch

750 mm

Junction boxes

16...1000 A

Grounding system

TN-C or TN-S

Fire resistance

180

Seismic resistance

7...9 points

Tire material

AD0 aluminum

Installed failure-free operating time, not less than

13500

Installed service life with possible replacement of switching devices, not less than

25 year

Protection degree of busbar line assembled in line according to GOST 14254

IP55 (IP65)*

Frequency

50...60

Rated voltage, max.

1000 V

Rated current, at ambient temperature + 45°C

1000...5000 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
