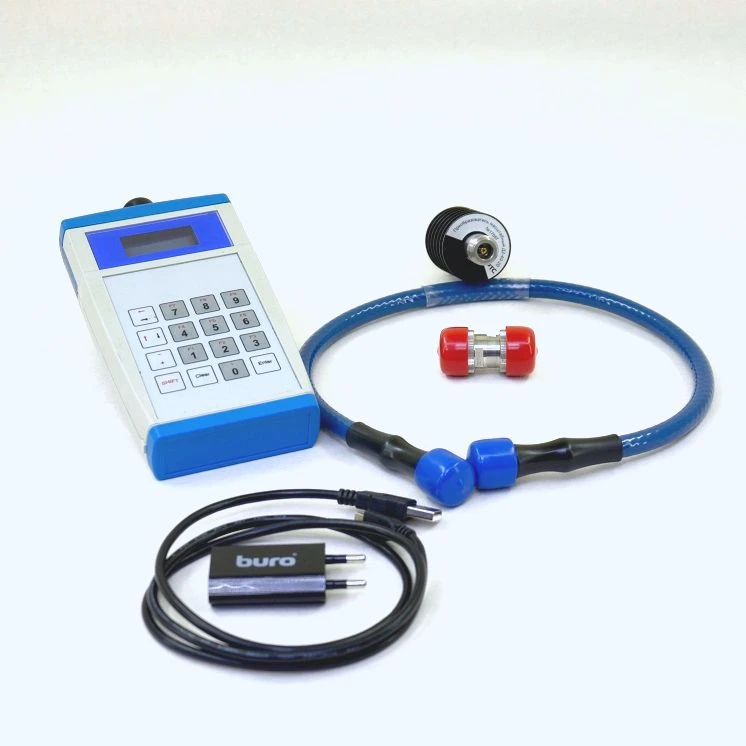

Absorbed power wattmeter M3-1-1500 "Narcissus", Modification of wattmeter M3-20/50

Digital Electrical Meters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Absorbed power wattmeter M3-1-1500 "Narcissus", Modification of wattmeter M3-1/50

Description

The absorbed power wattmeters M3-1-1500 "Narcissus" (modification M3-20/50) are designed for power measurements of unmodulated RF signals and average power value of modulated RF signals with maximum power level up to 0,01 W, and when using a scale converter up to 20 W in the frequency range from 0,3 to 3000 MHz.
Power measurement in the range of 10 nW...20 W
Frequency range of measured power from 300 kHz to 3 GHz
Two operating modes
Digital indication
Indication in dBm, W (nW, µW, mW), V (µV, mV)

Specifications

Measured power range

ATT OFF: 10 nW ... 10 mW; ATT ON: 100 µW ... 20 W W

Frequency range of measured power

300 kHz ... 3 GHz

Power measurement error

ATT OFF from 5 %; ATT ON from 6 % %

Power supply voltage

external from 220 V power adapter; internal from 3 AA batteries. V

Weight with PM

0.6 kg

Connector type

50 ohms
