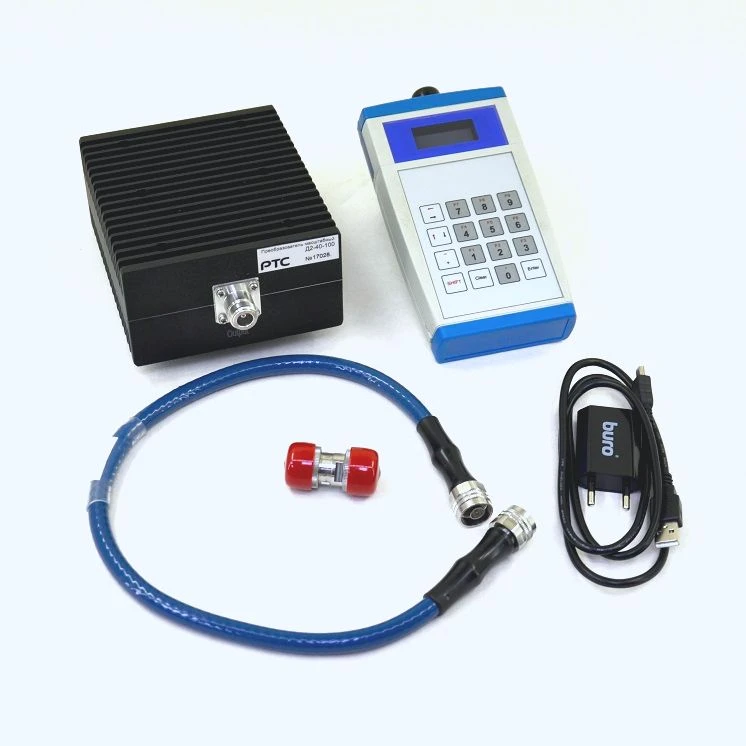

Absorbed power wattmeter M3-1-1500 "Narcissus", Modification of wattmeter M3-100/50
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The absorbed power wattmeters M3-1-1500 "Narcissus" (modification M3-100/50) are designed for power measurements of unmodulated RF signals and average power value of modulated RF signals with maximum power level up to 0,01 W, and when using a scale converter up to 100 W in the frequency range from 0,3 to 3000 MHz.
Power measurement in the range of 10 nW...100 W
Frequency range of measured power from 300 kHz to 3 GHz
Two operating modes
Digital indication
Indication in dBm, W (nW, µW, mW), V (µV, mV)
Power measurement in the range of 10 nW...100 W
Frequency range of measured power from 300 kHz to 3 GHz
Two operating modes
Digital indication
Indication in dBm, W (nW, µW, mW), V (µV, mV)
Specifications
Measured power range
ATT OFF: 10 nW ... 10 mW; ATT ON: 100 µW ... 100 W W
Frequency range of measured power
300 kHz ... 3 GHz
Power measurement error
ATT OFF from 5 %; ATT ON from 6 % %
Power supply voltage
external from 220 V power adapter; internal from 3 AA batteries. V
Weight with PM
2.7 kg
Connector type
50 ohms
