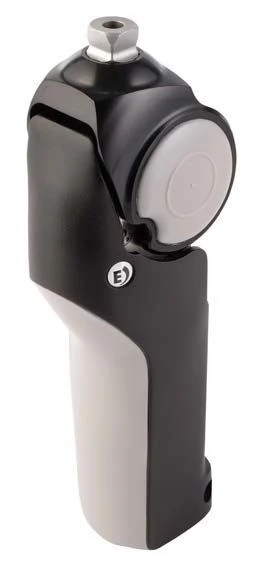

6H30 Hydraulic knee module

The hydraulic knee module 6H30 is designed for patients weighing no more than 125 kg with unilateral or bilateral amputation of the femur at any level, including at the knee joint separation and is recommended for patients with a high level of activity - M3, M4 (without sports load). Hydraulic knee module - monocentric
module with a rotating hydraulic system that controls the transfer phase and provides support in the support phase due to high flexion resistance. The ability to alternate walking on inclined surfaces and descending stairs is effectively supported by the hydraulic system with a close approximation to the physiological walking rhythm.
In the transfer phase, the knee module is also operated by a hydraulic cylinder. The level of damping is controlled by the flexion and extension throttles, ensuring comfortable walking over a wide range of speeds. The flexion and extension resistance can be easily adjusted independently.
