??????? ???-6.05.01.02.02.00.013

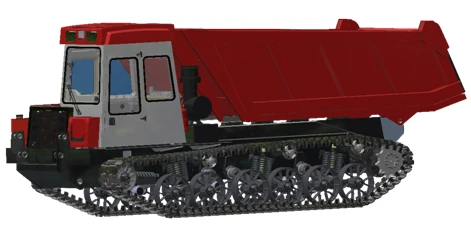

Basic chassis TSU-6 with permanently installed tipping equipment with carrying capacity of 18 tonnes, with tipping the body backwards, with a rear wall, closed by automatic locks when closing the body. The body is lifted by two hydraulic cylinders for balancing when unloading the body. The body is designed for loading bulk materials with bulk density up to 1.45, with maximum lump size up to 120 mm. For larger lumps and stones, it is necessary to install additional protection, which will consequently entail a reduction in the transported mass, but will allow loading in bulk of stones up to 800 mm. To increase labour safety, strain gauge limiters of the loaded mass are installed, which in case of overloading by more than 10% will not allow to start the movement.
