5D printer Stereotech HYBRID 530
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided

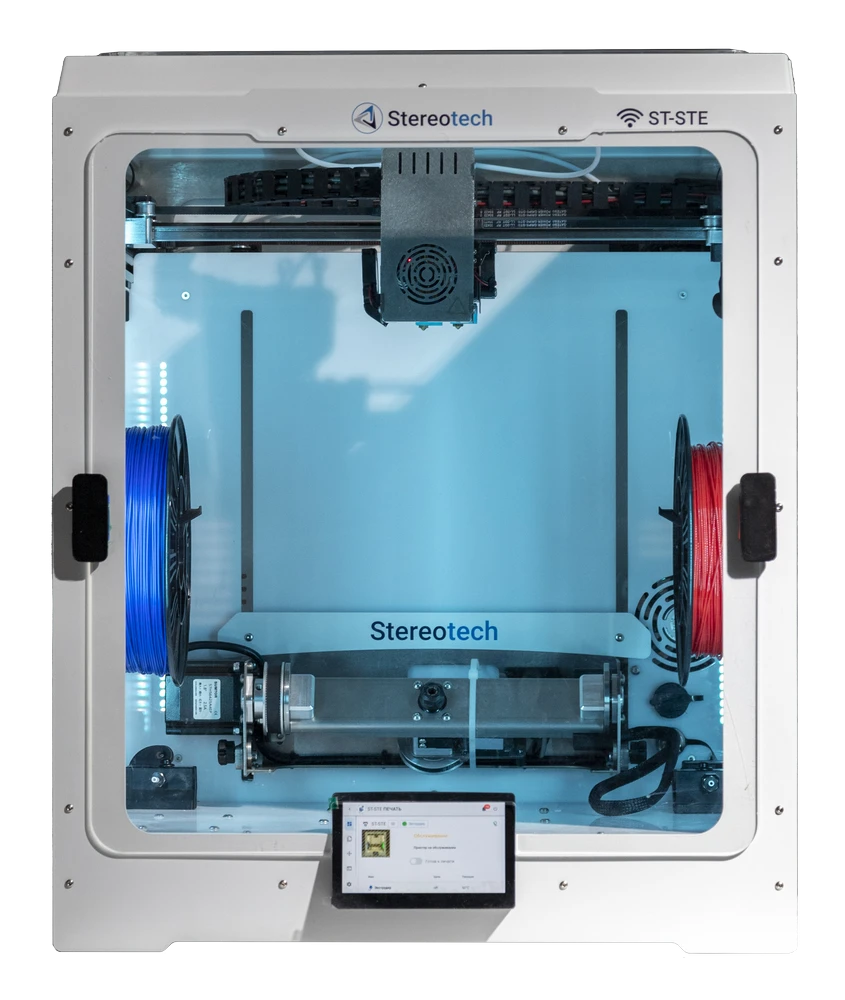

Stereotech HYBRID 530 is a 5-axis 3D printer with 5D additive manufacturing (5Dtech) FDM printing technology for creating durable functional products. 5-axis printers have additional degrees of freedom to tilt and rotate the workpiece during the printing process. The technology opens up the possibility to change the direction of layers and produce parts up to 4 times stronger. In addition, with 5Dtech it is possible to create complex models without overhanging supports. The dual extruder works with composite, engineering and modelling materials. The printer is equipped with an additional heated working platform, which allows the device to be used as a classic 3D printer. The printer comes with STE Slicer software for fully automatic preparation of models for three-axis and multi-axis printing.
Technical Specifications
| Type of product according to PP RF 616 | Additive material extrusion plants |
|---|---|
| Climatic execution (GOST 15150-69) | UHL4.2 |
| Weight with packing, kg | 54.5 kg |
| Weight of components without packaging, kg | 7.5 kg |
| Weight of printer without packaging, kg | 40.3 kg |
| Size with packing (WxHxH), mm | 600x800x800 |
| Size without packing (WxHxH), mm | 510x490x620 |
| Power consumption | 850 W |
| Power supply | 200-240V / 50Hz |
| Supported 3D model formats for preparation for printing | *.stl |
| Supported file formats for printing | *.gcode |
| Compatible print preparation software | STE Slicer |
| Printer management software | STE App |
| Connection interfaces | Wi-Fi |
| Systems for automated preparation and monitoring of the printing process | Three-position calibration sensor for printing modules |
| Maximum idle speed, mm/s | 200 |
| Range of calculated product printing speeds, mm/sec | 5...150 |
| Minimum dimensions of synthesized elements (GOST R 59586-2021) | Hole diameter: 2,0 mm |
| Provided accuracy qualification of synthesized elements (GOST 25346-2013) | B1/B8 2100/900 MHz |
| Minimum layer thickness, mm | 0.05 mm |
| Diameter of supported print material, mm | 1.75 mm |
| Supported print materials | Rigid polymer materials: PLA, PVA, ABS, SBS, PETG, TPU, PP, PA6, PA12, ABS/PA6, PC. |
| Maximum operating temperature of the heated platform, C | 120 °C |
| Maximum extruder operating temperature, C | 350 °C |
| Dimensions of nozzles to be installed, mm | Filament nozzle: 0.4 (default). |
| Number of extruders, pcs | 2 pc |
| Maximum weight of the product in 5D printing mode, kg | 1.5 kg |
| Maximum product size in 5D printing mode (DH), mm | 300x230 (printing with one or two extruders) |
| Maximum weight of the product in 3D printing mode, kg | 3 kg |
| Maximum product dimension in 3D printing mode (LWH), mm | 300x300x300 (single extruder printing) |
| Housing type | Closed with observation window |
| Dimensions of the construction area, mm | 310x300x300 |
| Print module | Tilt and swivel module (5D mode) |
| Number of axes of movement of actuators | 5 (5D mode) |
| Printing technology | 5D Additive Manufacturing (5Dtech) |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
