Available for Import
??????????????? ???-5101??-?
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

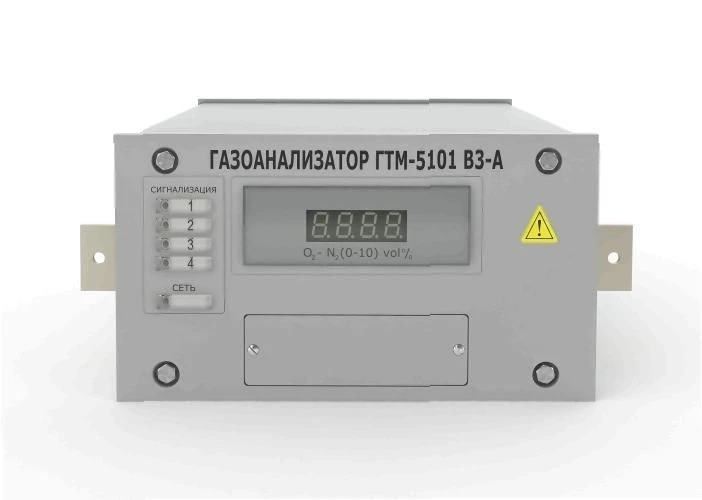

gas analysers GTM-5101VZ-A , designed to measure the volume fraction of oxygen in process gas mixtures, in nitrogen and air.
Field of application - control of technological processes at nuclear power plants.
The scope of application of gas analysers in accordance with Federal Law No. 102-FZ is "industrial control over compliance with industrial safety requirements established by the legislation of the Russian Federation for the operation of hazardous production facilities".
The principle of operation of gas analysers is thermomagnetic.
The type of gas analysers is a stationary device of block-modular construction.
Structurally, the gas analysers consist of:
a) measuring transducer (IP);
b) a remote primary converter (PIP).
Field of application - control of technological processes at nuclear power plants.
The scope of application of gas analysers in accordance with Federal Law No. 102-FZ is "industrial control over compliance with industrial safety requirements established by the legislation of the Russian Federation for the operation of hazardous production facilities".
The principle of operation of gas analysers is thermomagnetic.
The type of gas analysers is a stationary device of block-modular construction.
Structurally, the gas analysers consist of:
a) measuring transducer (IP);
b) a remote primary converter (PIP).
Specifications
Weight
22 kg
Controlled gas
Oxygen (O2) in nitrogen (N2)
Type
Stationary
Equipment
Gas analyser GTM-5101VZ-A, set of spare parts, list of operating documents, set of operating documents
Housing material
metal
Operating temperature range
5...50 °C
Power supply voltage
220 V
