Available for Import

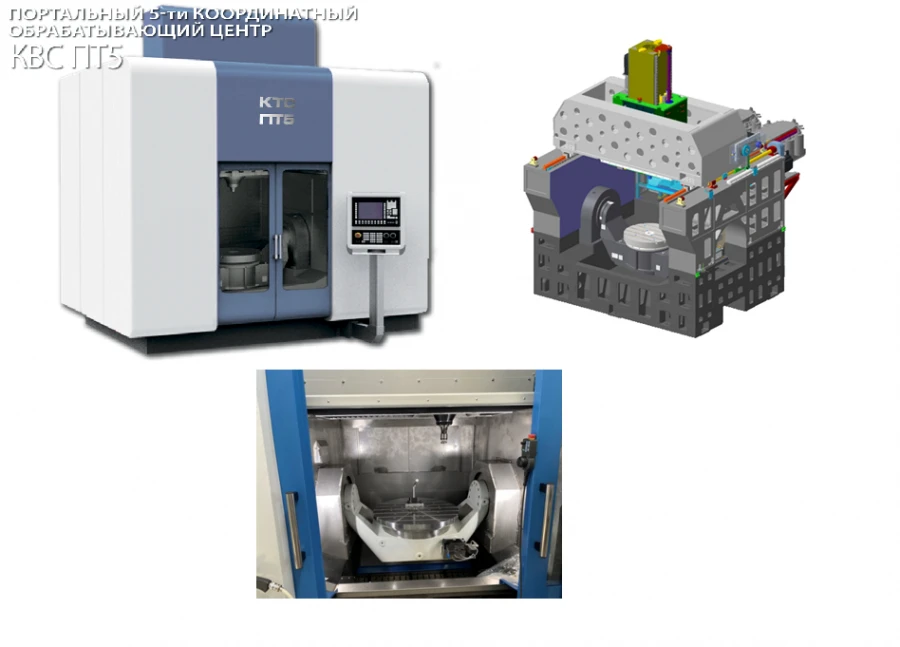

5 coordinate gantry type machining centre model KVS PT5
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
* - It is possible to modify the parameters according to the customer's technical specification.
Technical Specifications
| Type of product according to PP RF 616 | 5-axis portal machining centers |
|---|---|
| Height | 3395 mm |
| Machine type | five-axis vertical milling machining centre with cnc |
| Length | 5350 mm |
| Width | 5000 mm |
| Power supply voltage | 380 V |
| Maximum workpiece diameter | 1000 mm |
| Highest workpiece height | 600 mm |
| Weight of workpiece to be installed | 1000 kg |
| Weight | 20500 kg |
| Stroke along axes | x=800 mm; y=800 mm; z=600 mm; a=240 degrees (±120); c=360 degrees mm |
| Maximum diameter of the work table | 800 mm |
| Spindle power | 27 kW |
| Maximum rotational speed | 18000 |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Shipping & Payment Information
Shipping Terms
- FOB: Novorossiysk, Russia
- CIF: Available to major ports worldwide
- EXW: Manufacturer's facility, Russia
Delivery Time
- Sea freight: 30-60 days (depending on destination)
- Air freight: 14-21 days (for urgent orders)
- Production lead time: 30-90 days (depending on order size)
Payment Methods
- Letter of Credit (L/C)
- Wire Transfer (T/T)
- Escrow Services
Order Minimums
- We work with orders starting from 1 container
- You can mix different products in one container
- Volume discounts available for larger orders
Customs & Documentation Support
We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
Contact Our Import Specialists
WhatsApp (Recommended)
For fastest response and immediate assistance with pricing, availability, and ordering.
+971 58 657 4796For detailed inquiries, documentation requests, and formal communications.
Send Email Inquiry info@tonzar.comRequest Call Back
Schedule a consultation with our import specialists at your convenience.
Business Hours
We're available to assist you during the following hours:
- Monday - Friday: 9:00 AM - 6:00 PM (GMT+4)
- Saturday: 10:00 AM - 2:00 PM (GMT+4)
- Sunday: Closed
Our WhatsApp support is available outside business hours for urgent inquiries.
