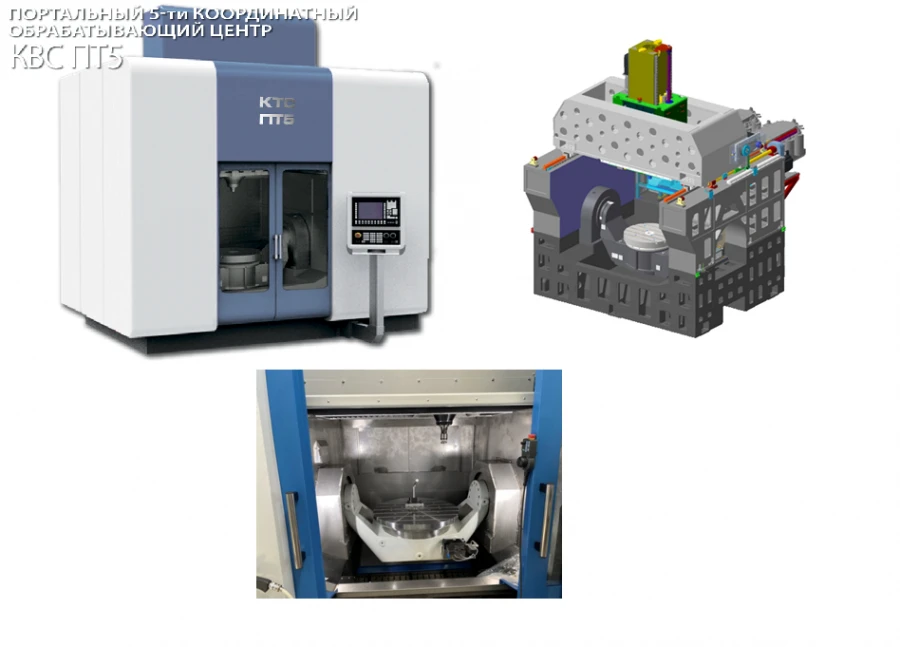

5-Axis Portal Machining Center KVS PT5 Available for Import

5-Axis Portal Machining Center KVS PT5 for Precision Machining Tasks

Metal Machining Centres
Manufacturer: KЭMZ OJSC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

5 coordinate machining centre "KVS" model PT5 is designed for milling, drilling, threading and boring operations on workpieces of complex configuration made of various materials weighing up to 600 kg with the help of axial tools rotating at a maximum speed of up to 18000 rpm. Spindle power up to 27 kW. Diameter of the work table from 630 to 800 mm. Stroke X= up to 800 mm, Y=800 mm, Z=600 mm, Table tilt=240 degrees (±120), Table rotation=360 degrees.

- It is possible to modify the parameters according to the customer's technical specification.

Specifications

Type of product according to PP RF 616
5-axis portal machining centers
Height
3395 mm
Machine type
five-axis vertical milling machining centre with cnc
Length
5350 mm
Width
5000 mm
Power supply voltage
380 V
Maximum workpiece diameter
1000 mm
Highest workpiece height
600 mm
Weight of workpiece to be installed
1000 kg
Weight
20500 kg
Stroke along axes
x=800 mm; y=800 mm; z=600 mm; a=240 degrees (±120); c=360 degrees mm
Maximum diameter of the work table
800 mm
Spindle power
27 kW
Maximum rotational speed
18000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
