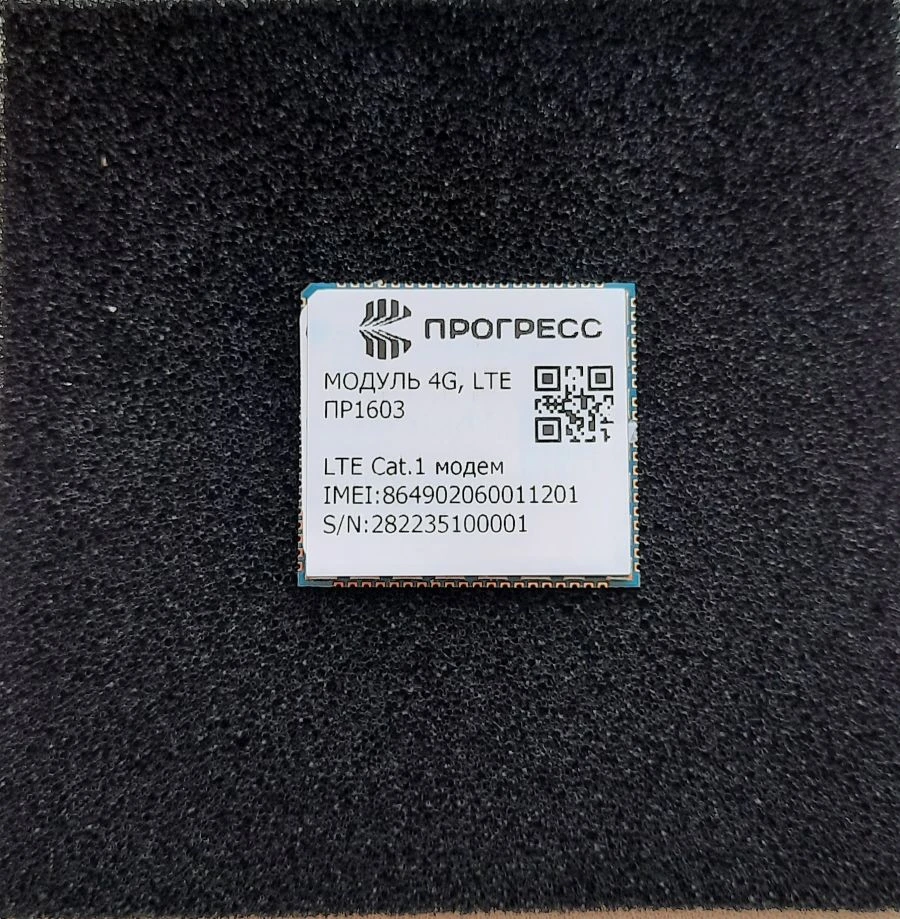

4G, LTE module (PR1603)

Wireless Communication Modules

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Specifications

Frequency range GSM/GPRS/EDGE: B3/B8; FDD-LTE:B3/B7/B20; TDD-LTE:B38

Output power GSM900: 33+-2dBm; DCS1800: 30+-2dBm;LTE: 23+-2dBm

Data transfer rate At LTE: -LTE FDD: DL/UL 10/5 Mbit/s; - LTE FDD/TDD: DL/UL 10/5 Mbit/s. Under GSM: - EDGE (Multi-slot Class 12): DL/UL 296.0/236.8 kbps; - GPRS (Multi-slot Class 12): DL/UL 107.0/85.6 kbit/s.

SIM card support 3.0 V and 1.8 V

Supported protocols TCP/IP, HTTP, FTP, UDP

Interfaces UART, USB, GPIO,FC, PCM

Power supply voltage 3.3 to 4.2 V (3.8 V is typical)

Continuous operation time 24, no less
