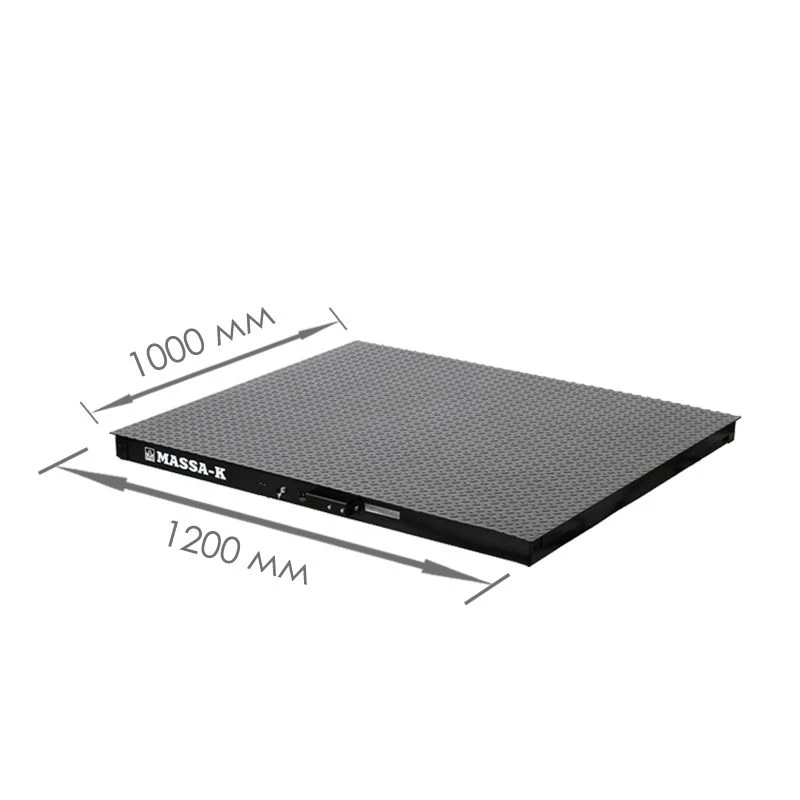

4D-PM-12/10-500 Weighing Module for Scales with 500 kg Capacity

Weighing module (weighing platform) for platform and mortise scales with load up to 500 kg. The size of the weighing platform - 1200x1000 mm. Operating temperature range from -30 to +40 ° C.

Protection degree - IP 68. The module has a robust design and light weight. The platform is fixed on 4 digital weight sensors.

The sensors are connected to the output connector of RS-485 interface via a cable-concentrator, which is used to connect a terminal or USB-adapter. It is connected to different types of weight terminals "MASSA-K": from simple, displaying only weight, to terminals with label printing. Weight terminals (equipped with interfaces) are compatible with 1C and can be easily connected to various accounting and cash register programmes.

The module can also be connected directly to a computer via "Weighing adapter USB/4D". The module is certified for compliance with the interstate standard GOST OIML R 76-1-2011. Metrological characteristics correspond to the average accuracy class.

Warranty - 3 years.
