3H02C400 Carrier module

The support module is used in tibia, femur and post-extracted femur prostheses, compensates for the shortening of the amputated part of the tibia or femur and provides adjustable connections to other modules.

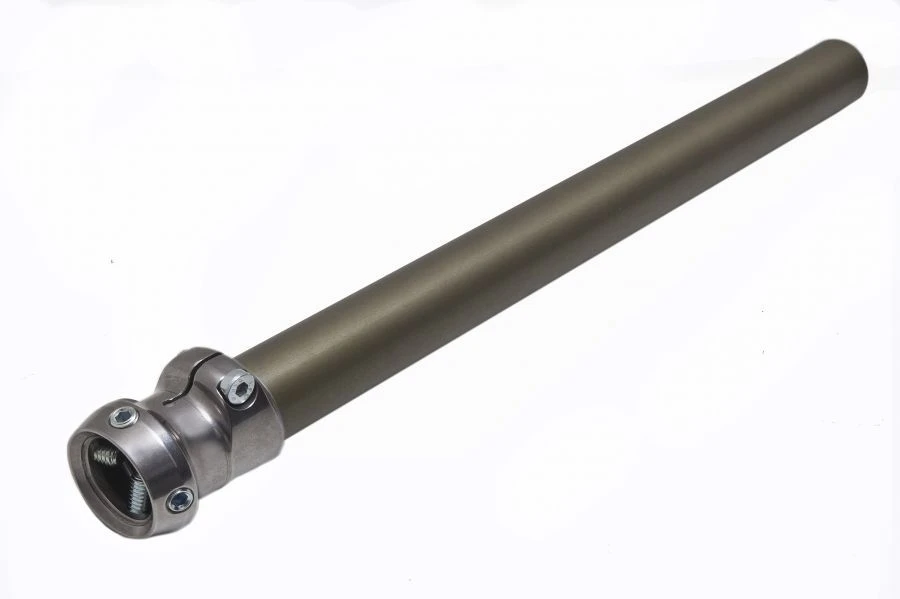

The support module consists of an adapter sleeve and a tube. The adapter sleeve and tube are connected by tightening the clamp with a screw.
The adapter sleeve has a spherical bearing surface and is fitted with four 14 mm long screws for connection to the prosthesis modules. In the prosthesis, this connection allows angular adjustment in the frontal and sagittal planes.
The tube is made of aluminium alloy and has the shape of a hollow cylinder with an outer diameter of 30 mm. In the prosthesis, this connection allows horizontal rotation to the required angle.
The support module is compatible with modular systems of lower limb prostheses of other manufacturers using connection elements according to GOST R 51191. Material: stainless steel.
