3D Scanner with Dual High-Precision Sensors 3DQ V2 for Accurate 3D Imaging

Specialty Scanners

Manufacturer: TRIDEQ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

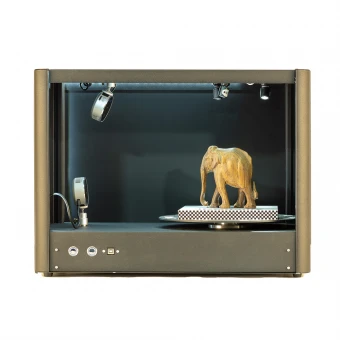

3D scanner that allows you to scan with two high-precision sensors (Realsense Lidar L515) looking at the object from different points of view, in a closed case with the possibility of adjusting the backlight. The Planeta3DMultisensor software is included. 3D scanner allows scanning objects up to 10x10x7.5 cm with increased accuracy and obtaining photorealistic texture.

A wide range of post-processing functions will allow you to prepare the model for 3D printing without the use of third-party applications. The 3D scanner is equipped with a turntable. In addition to Planeta3DMultisensor, Planeta3DPhoto software is included to create high quality photogrammetry models for post-processing in Planeta3DMultisensor.

Planeta3DPhoto is more suitable for scanning large-scale or street objects Advantages:

- Ease of use
Ability to scan with two or more cameras at the same time to avoid "...

Specifications

Scanning accuracy

0.05...0.1 mm

Scanning speed, million dots/sec

2000000

Minimum size of objects to be measured

50...300 mm

Maximum size of measured objects

500 mm

Format for saving scan results

STL, PLY, OBJ, VMRL

Post-processing functions

Got it

Realsense Lidar L515 camera

2 pcs

Closed enclosure

Got it

Illumination of scanning area

Got it

Color scanning

Got it

Scanning method

Structured illumination, optical triangulation

Scanning time full arc

Top jaw

Lower jaw

2-8 stamp units

1 stamp

Drain

Rotary table diameter

200 mm

Permissible weight of the model

15 kg

Planeta3DMultisensor software in Russian language

Got it

Model smoothing mode

Got it

Mode of automatic removal of "unnecessary" elements

Got it

Mode of model polygonality reduction

Got it

Model trimming mode

Got it

Mode of aligning the model to the plane

Got it

Mode of eliminating holes in the model

Got it

Mode of automatic model splitting into separate STL files

Got it

Model scaling mode

Got it

Saving scan data to a file

Got it

Mode of asymmetric model scaling

Got it

Removing frames from a sequence

Got it

Photogrammetry program Planeta3DPhoto

Got it

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
