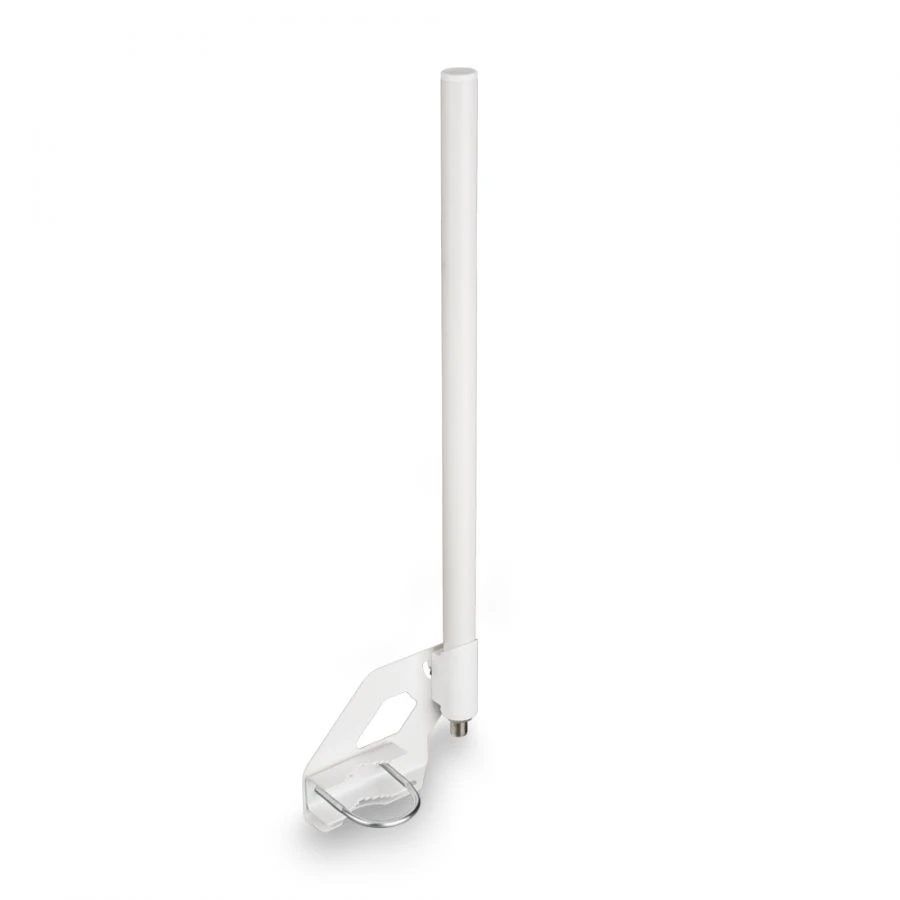

360-Degree Omnidirectional GSM Antenna KC5-900 White

Available for Import

360-Degree Omnidirectional GSM Antenna KC5-900 for Enhanced Signal Reception

Antenna Equipment & Parts

Manufacturer: KROKS PLUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The directional antenna does not require pointing at the base station. The opening angle of the directional pattern in the horizontal plane 360 °, in the vertical - 8 °. The antenna housing is made of durable and lightweight plastic, which is not exposed to atmospheric influences.

Diameter 25mm. The length of the antenna without the bracket is 620 mm. The antenna is equipped with a universal bracket with a clamp and a set of hardware that allows you to mount it to the wall, ceiling, on the mast or other bracket (eg KN-200).

Frequency range of the antenna allows you to use it in UMTS 900 and GSM 900 standard. In the whole frequency range the antenna gives a gain of 5 dB. Two types of connectors are installed on the antenna: F (female) and N (female).

The new antenna can be used both for stationary placement and in mobile version for boats, yachts, cars.

Specifications

Polarization

Vertical

Connector

N- female, F- female

Weight

0.55 kg

Minimum value of the operating radio frequency range

880

Maximum value of the operating radio frequency range

960

Gain factor

Standing wave coefficient (VSWR)

Input impedance

SBVVBG ohm

Maximum permissible power

10 W

Maximum wind load

108

MIMO support

Received signals

GSM-900

Type of execution

Omnidirectional

Length

630 mm

Width

115 mm

Height

55 mm

Mark

Kroks

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
