???????????????? ??????????? ??????-?-300-??-??-IP-3??-2436VDC/AC-Z-BD
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
???????????????? ??????????? ??????-?-300-??-??-IP-5??-2436VDC/AC-BD
???????????????? ??????????? ??????-?-300-??-??-IP-4??-220VAC
Explosion-proof video camera Relion-N-300-IR-SO-IP-4MP-PoE
Explosion-proof video camera Relion-N-300-IR-SO-IP-3MP-PoE-Z-BD
Explosion-proof video camera Relion-N-300-IR-SO-IP-5MP-PoE-BD
Description

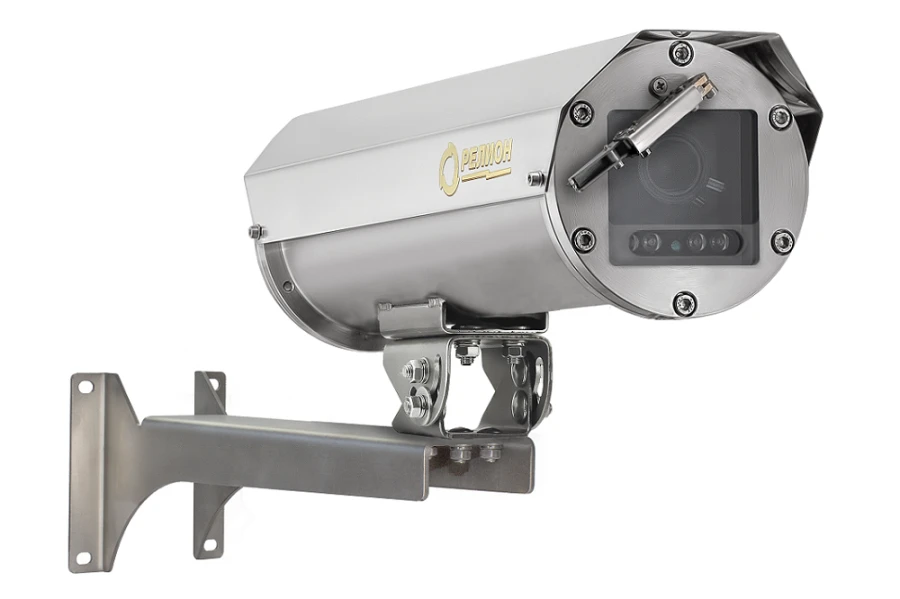

Explosion-proof IP video camera with heating system, wiper and IR illumination. Explosion protection marking RV Ex db I Mb/1Ex db IIC T6 Gb/Ex tb IIIC T85C Db. IP66/68. Temperature range -65...+60C. Digital IP-camera with a resolution of 3 megapixels. Motorised lens, high-speed, 4.6-153 mm, autofocus. Sensitivity 0.01 lux (day) / 0.002 lux (night). Power supply 2436 V DC/AC. Field of application - security and technological video surveillance systems in hazardous areas of classes "1" and "2", as well as in underground workings of mines, mines and their above-ground structures. Full dust and moisture resistance allows to use the camera in rooms with humidity up to 100%, heavy dustiness, as well as in open areas in difficult weather conditions. The camcorder version with built-in wiper meets modern requirements of video surveillance systems. For automatic switching on/off IR-illumination in the design of the camcorder provides a twilight relay.
Specifications
IR illumination range
60 m
Consumption power
53 W
Weight
7 kg
Sensitivity
0,002
Sensitivity
0,01
Resolution
3
Nutrition
24÷36
Temperature range
-65 °C
Explosion protection marking
RV Ex db I Mb/1Ex db IIC T6 Gb/Ex tb IIIC T85°C Db
Degree of protection by shell according to GOST 14254
IP66/IP68
Housing material
stainless steel
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
