2001.23.00.010 Drive axle

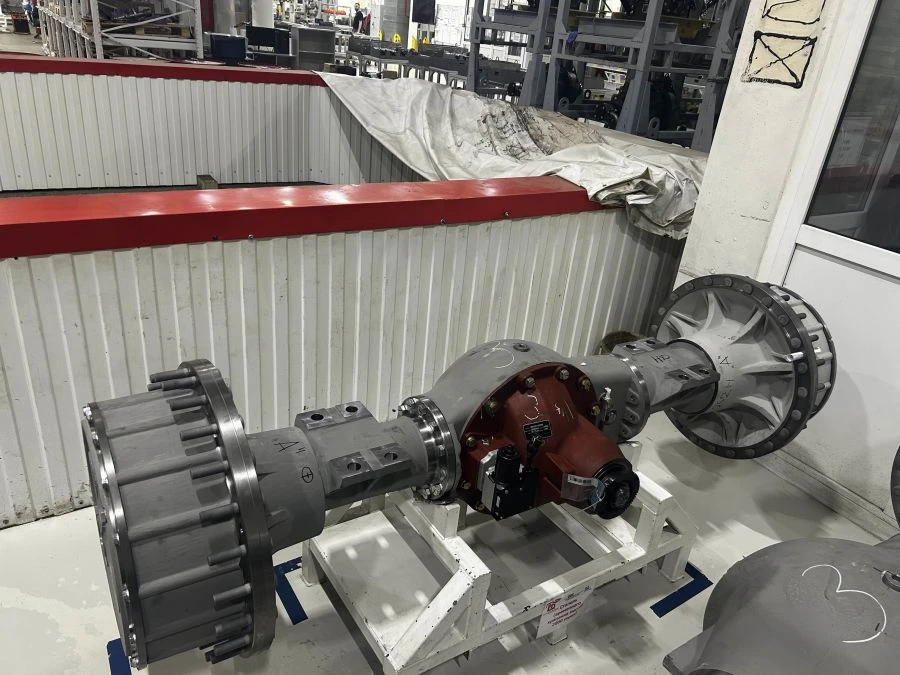

2001.23.00.010 Front drive axle is designed to change the torque and transfer it to the drive wheels. They also transmit traction force and reaction torque from the driving wheels to the tractor frame, take the tractor weight and load forces, lateral reactions arising when the machine is moving on a bend or a slope, when turning provide the driving wheels with the possibility to rotate with different number of revolutions. Maximum weight 1330 kg, length 766 mm, width 2380 mm, height 700 mm. The front drive axle has a 100% controlled differential lock. The front drive axle is installed in the front part of the tractor (under the engine), in its design have a main gear with a circular tooth, wet-type multi-disc clutch and cam clutch for differential lock, half axles, planetary reducers.
