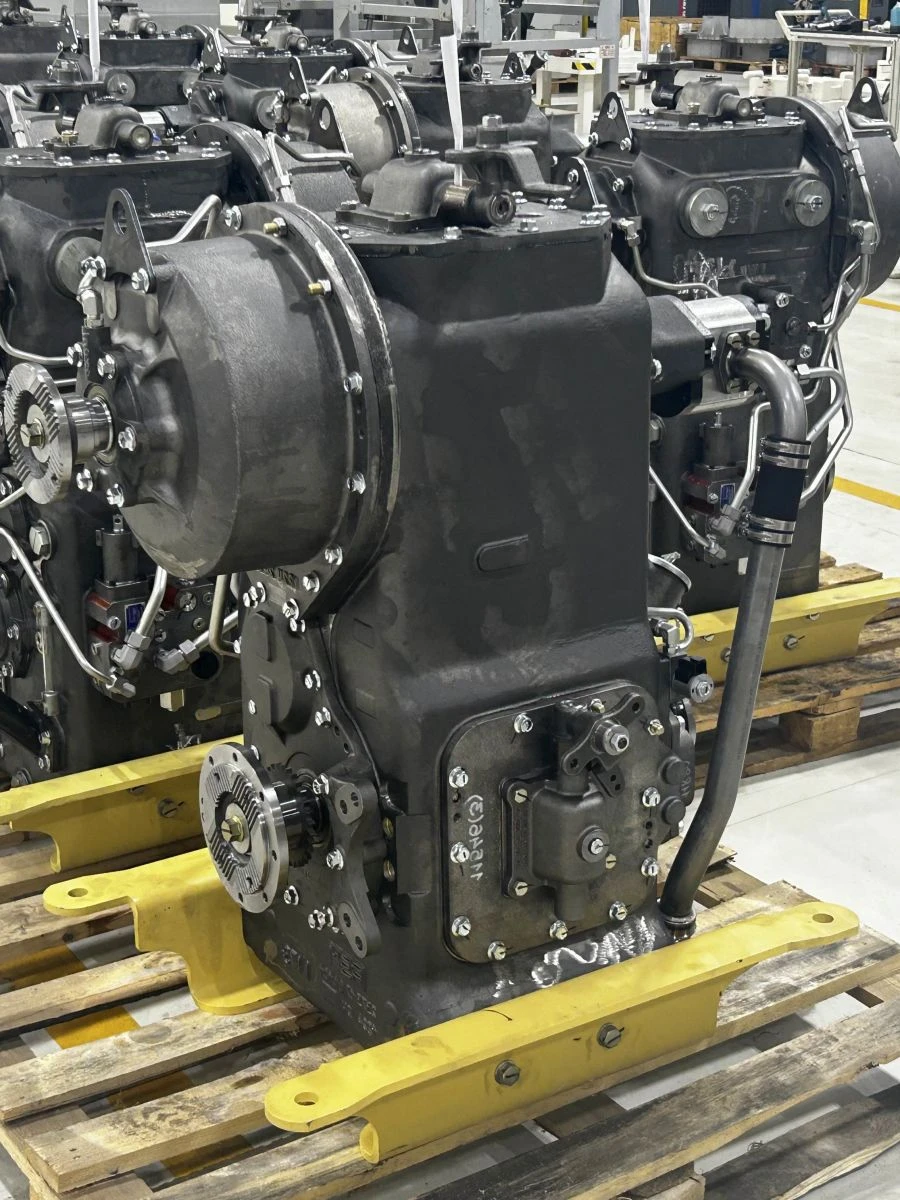

2001.17.01.000 Gearbox

The RSM 2000 mechanical gearbox is designed to change the total transmission ratio, to change the torque on the wheels and the pulling force on the hook, the speed of the tractor in front and in reverse, the power take-off on the PTO. Maximum weight 740 kg, length 1077 mm, width 692 mm, height 1160 mm. The mechanical gearbox RSM 2000 provides 12 forward and 4 reverse gears. RSM 2000 manual transmission with 12 forward speeds and 4 reverse speeds, with continuous mesh intermediate shaft. The RSM 2000 manual gearbox is mounted in the lower part of the tractor (under the cab).
