?2000?-????????-609-Exd-?

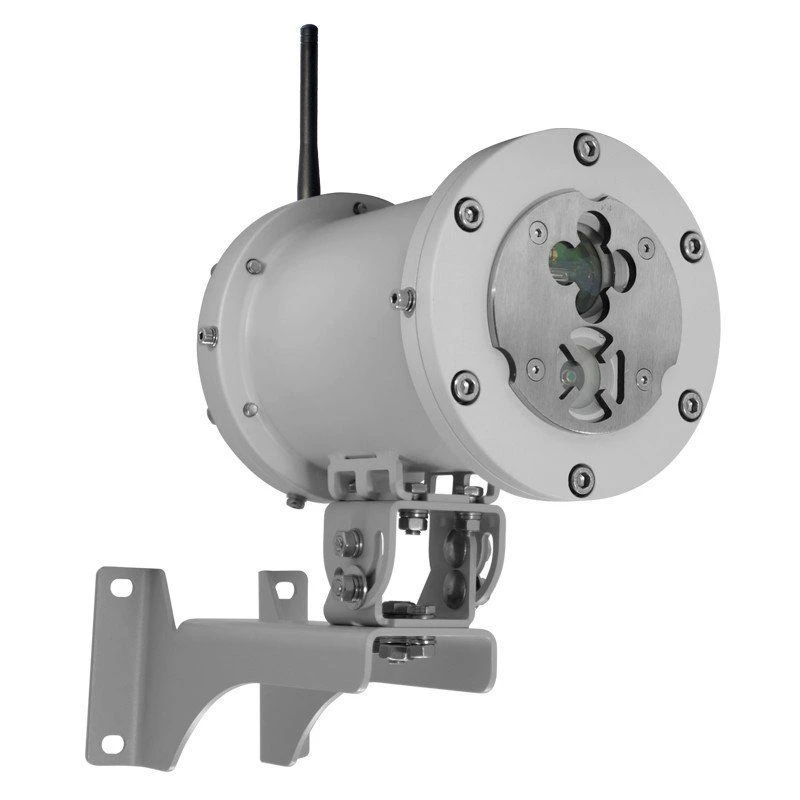

Fire flame detector multi-band (IR/UV) explosion-proof addressable radio channel. The detector is designed for operation as part of the radio channel system "S2000R" with two-way radio exchange. The detector is designed for operation in hazardous areas of classes "1", "2", "21" and "22" of premises and outdoor areas. It can be used in underground workings of mines, mines and their above-ground structures. The design of the device and the scheme of sensors arrangement allows to obtain the resulting diagram of detection of fire sources in the form of a 90° cone. The housing is galvanised low-carbon steel. Explosion protection marking ?? Ex db I Mb /1Ex db IIC T6 Gb/Ex tb IIIC T85°C Db
