Available for Import

???????????? ????2-100?70-01-?2

Special Purpose Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

???????????? ????2-100?105-01-?2

Description

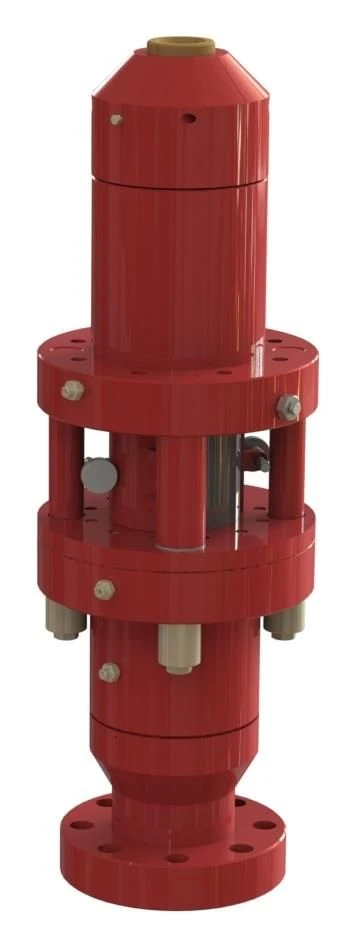

GDBT2-100x70-01-K2 sealer is designed for use as a part of a unit with a metal longitudinal coupless pipe or with a hose cable (polymer reinforced pipe), as a part of a set of devices for running and lifting longitudinal coupless pipes under pressure (as a part of coiled tubing units), in the process of development or repair of oil, gas, gas condensate wells.

Specifications

Weight 593 kg

Diameter 385 mm

Height 1330 mm

Test pressure of the hydraulic system 25 MPa

Working pressure in the hydraulic system 10 MPa

Number of sealing chambers 2 pc

Maximum diameter of descending equipment and couplings on pipe 100 mm

Actual diameter of the through-hole for equipment and couplings to be lowered on the pipe 103 mm

Test pressure 105 MPa

Working pressure for sealing the pipe with the wellhead 70 MPa

Nominal bore diameter 100 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
