Available for Import

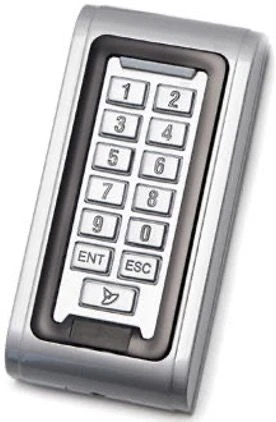

125 kHz RFID reader, model: Matrix-IV (E HT Metal Keys mod.)

Electrical Interface Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The reader is designed to read serial numbers of identifiers (proximity cards, key fobs) of EM-Marine, HID ProxCardII (HID 1326) and Atmel 5557 (Temic) standards in access control and management systems (ACS). The read code is transmitted to the controller via iButton (Dallas Touch Memory) or Wiegand 26(42) protocols. The reader supports simultaneous operation with EM-Marine and Temic cards (installed factory firmware) or HID ProxCardII and Temic (special firmware). The reader provides the ability to pass both with an identifier and without an identifier by dialling a code on the keypad.

Technical Specifications

Operating frequency	125
Type of identifiers used	EM-Marine, HID ProxCard II and Atmel 5557(Temic)
Defining the card standard	Automatic, without additional settings
Reading range	EM-Marin, Atmel 5557(Temic) - 5 cm HID ProxCard II - 3 cm
Output interface	Ibutton (Dallas Touch Memory), Wiegand-26(42)
Maximum line length from reader to controller: Dallas Touch Memory	No more than 15 m
Maximum line length from reader to controller: Wiegand	Not more than 100 m
Light and sound indication	Got it
External control of LED and sound	Got it
DC supply voltage	B1/B8 2100/900 MHz V
Maximum current consumption	150 mA
Maximum load current of bell output	1,3 ?
Dimensions	120x58x20 mm
Housing material	Silumin, plastic
Operating temperature	-40...50 °C
Weight	500 g

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
