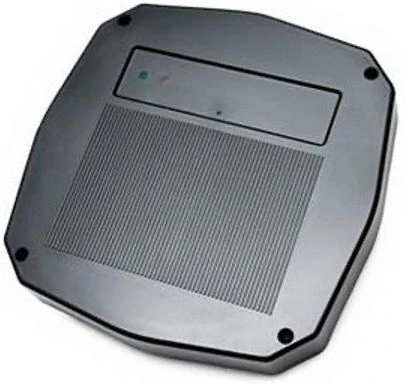

125 kHz and 433.92 MHz Reader for Access Control Systems - Matrix-V

Electrical Interface Devices

Manufacturer:OTK LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for use in access control and management systems (ACS) and allows you to read the numbers of identifiers (card, key fob, bracelet, etc.) operating at a frequency of 125 kHz (in the standard EM-Marine), receive signals from radio fobs at a frequency of 433 MHz (Keeloq) and then transmit the received information to the controller via protocols iButton (Dallas Touch Memory), Wiegand 26 or RS-485 interface

Specifications

Operating frequency

125 kHz, 433.92 MHz

Type of identifiers used

EM-Marine, 433MHz radio fobs (Keelog)

EM-Marine card reading range (IL-05ELR)

SBVVBG cm

Radio keyfob reading range

5 m

Output interface

Ibutton (Dallas Touch Memory), Wiegand 26, RS-485

Connector for connecting an external antenna

SMA-F

Maximum line length from reader to controller: Dallas Touch Memory

15 m

Maximum line length from reader to controller: Wiegand

100 m

Maximum line length from reader to controller: RS-485

1200 m

Light and sound indication

Got it

External control of LED and sound

Got it

DC supply voltage

B1/B8 2100/900 MHz V

Current consumption

500 mA

Dimensions

225x225x36 mm

Housing material

Plastic

Operating temperature

-40...50 °C

Weight

1100 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
