100373086 Submersible electric motor 562 series ESP Reda
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
103055424 PEDMT 456 series submersible motor
104207767 Submersible electric motor PEDMT 130 series
100316721 Submersible three-phase sectional asynchronous submersible motor of REDA 456 series
104581210 Submersible electric motor PEDMT 117 series
104397107 Submersible electric motor PEDMT 130 series
Description

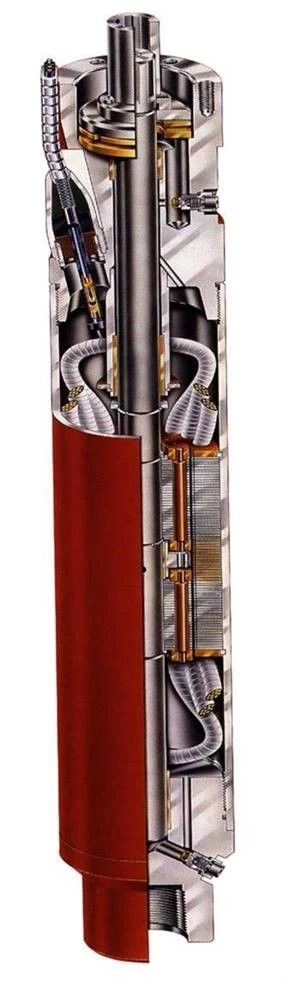

Submersible electric motor 562 series UECP Reda.
The electric motor is used to convert electrical energy into mechanical energy of rotation of electric centrifugal pumps ESP.
Casing diameter - 127 mm;
Number of rotor packages - 15;
Rated power - 450 hp;
AC voltage - 3137 V;
Current strength - 86,5 A (frequency 50 Hz);
Stator housing material - stainless steel RLOY;
Manufacturer - Tyumen Pumps Plant Schlumberger Tyumen.
The electric motor is used to convert electrical energy into mechanical energy of rotation of electric centrifugal pumps ESP.
Casing diameter - 127 mm;
Number of rotor packages - 15;
Rated power - 450 hp;
AC voltage - 3137 V;
Current strength - 86,5 A (frequency 50 Hz);
Stator housing material - stainless steel RLOY;
Manufacturer - Tyumen Pumps Plant Schlumberger Tyumen.
Specifications
Explosion-proof
Armoured glass
Motor power
331 kW
Operating medium
formation fluid
Climatic version
?5
RPM
2917
Length
11455 mm
Diameter
143 mm
Weight
5518 kg
Housing material
stainless steel RLOY
