Available for Import

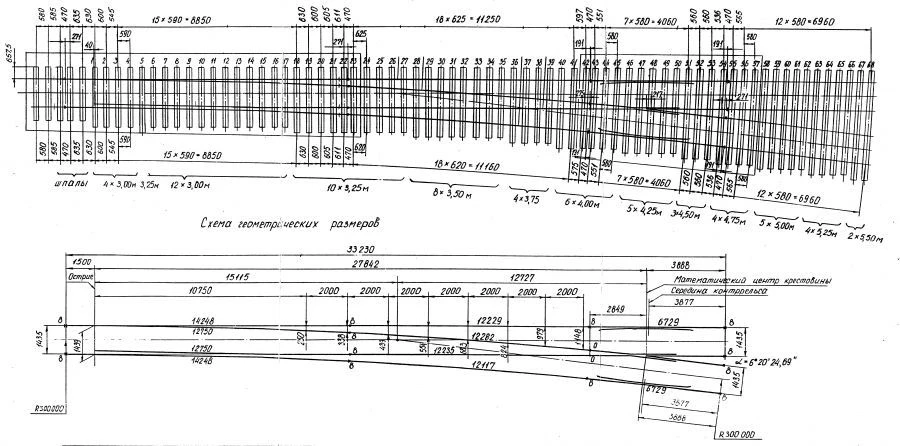

1/9 UIC60 type UIC60 type cross-over (project 2814.00.000/-01)
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
The switch uses elastic fastening of frame rails and cross rails with a counter-rail with the use of special spring terminals.
The switch is made with flexible sharps. The transfer uses pads with high flanges and rubber-cord spacers between the rail sole and pads.
The crossbar is made of high manganese steel of welded construction - rail ends are welded to the core.
Counter rail, not connected to the track rail. The shackles and frame rails are HFI hardened.
Technical Specifications
| Cross type by construction | Team |
|---|---|
| View in the direction of a side or crossing track | Left, right |
| Rail type | UIC60 |
| Cross brand | 1/9 |
| Arrow design | With flexible sharps |
| Type of single transfer | Ordinary |
| View | Single |
| Cross type by angle | Spicy |
| Type of product according to PP RF 616 | Track equipment and devices and their parts |
| Cross type by angle | Spicy |
| View | Single |
| Type of single transfer | Curved one-sided |
| Arrow design | With flexible sharps |
| Cross brand | 1/9 |
| Rail type | UIC60 |
| View in the direction of a side or crossing track | Left, right |
| Cross type by construction | One-piece cast with welded rail ends |
| Cross type by angle | 1/9 |
| Type of timber | wooden |
| Type | UIC60 |
| Type of timber | wooden |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Shipping & Payment Information
Shipping Terms
- FOB: Novorossiysk, Russia
- CIF: Available to major ports worldwide
- EXW: Manufacturer's facility, Russia
Delivery Time
- Sea freight: 30-60 days (depending on destination)
- Air freight: 14-21 days (for urgent orders)
- Production lead time: 30-90 days (depending on order size)
Payment Methods
- Letter of Credit (L/C)
- Wire Transfer (T/T)
- Escrow Services
Order Minimums
- We work with orders starting from 1 container
- You can mix different products in one container
- Volume discounts available for larger orders
Customs & Documentation Support
We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
Contact Our Import Specialists
WhatsApp (Recommended)
For fastest response and immediate assistance with pricing, availability, and ordering.
+971 58 657 4796For detailed inquiries, documentation requests, and formal communications.
Send Email Inquiry info@tonzar.comRequest Call Back
Schedule a consultation with our import specialists at your convenience.
Business Hours
We're available to assist you during the following hours:
- Monday - Friday: 9:00 AM - 6:00 PM (GMT+4)
- Saturday: 10:00 AM - 2:00 PM (GMT+4)
- Sunday: Closed
Our WhatsApp support is available outside business hours for urgent inquiries.
