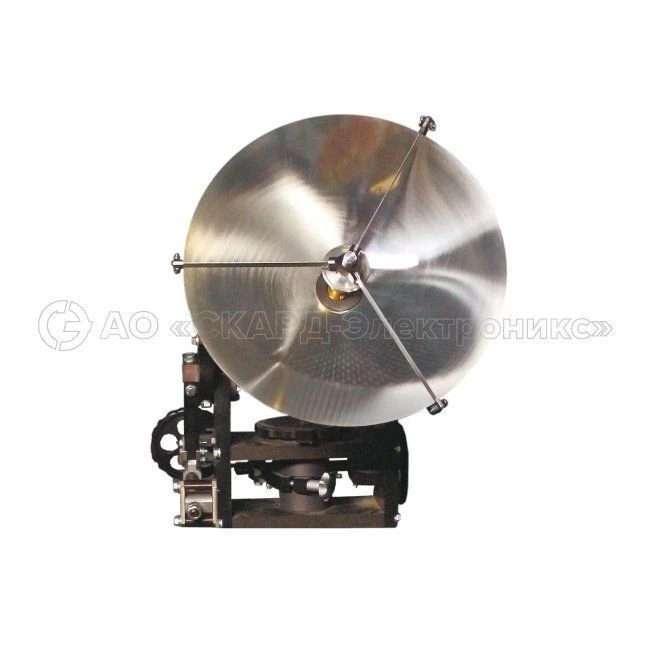

ZA5-0.4 Reflective Antenna System for 26.5 - 110 GHz Applications

Mirror antenna system ZA5-0,4 is made according to the scheme "Kassegren". It is an antenna system with an interchangeable set of irradiators for typical sections of the range from 26.5 to 110 GHz. The system is recommended for reception of radio signals of various communication lines, as well as for experimental studies.

It provides signal reception and transmission over the frequency range sections from 26.5 to 110 GHz with different types of polarisation: linear, double linear, circular right and left rotation, depending on the type of the installed irradiator. Rapid change of frequency range and polarisation type is achieved by installing interchangeable illuminating systems. No additional adjustments of the counter-reflector of the antenna system are required when changing the illuminating system.

It has a high gain in the operating frequency range.
