Available for Import

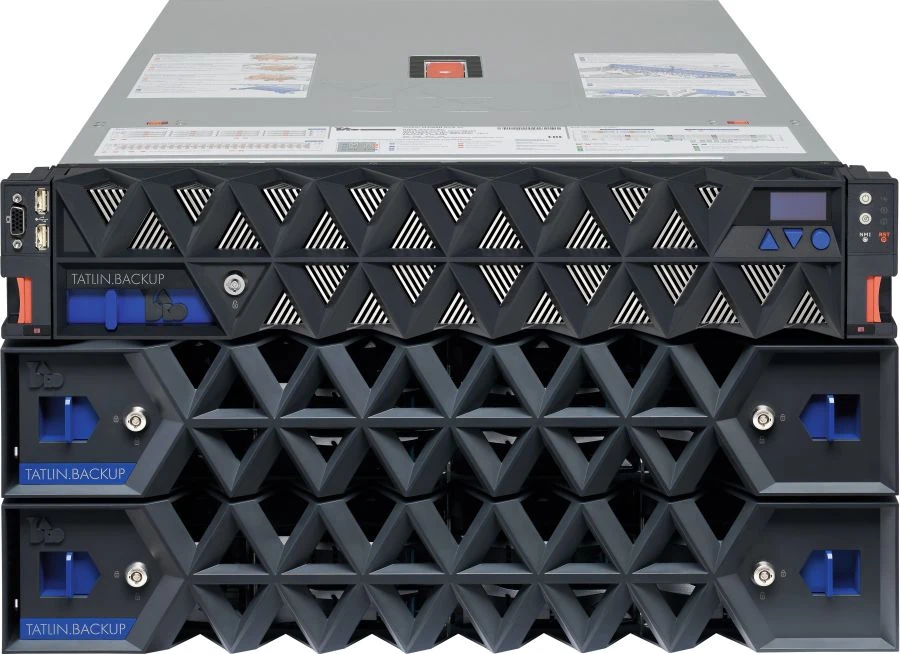

YADRO Tatlin-B-M Data Storage System (TATLIN.BACKUP.M) for Efficient Backup Management

Storage Devices

Manufacturer: KNS GROUP LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

YADRO Tatlin-B-M (TATLIN.BACKUP.M) data storage system is a system for backup storage with on-the-fly deduplication and compression of stored data

Specifications

Dedicated port for remote management of storage hardware components

Got it

Possibility to equip with InfiniBand ports (64; 100 Gbps)

Possibility to equip with SAS ports (6; 12; 24 Gb)

Got it

Data access protocol support (SMB/CIFS; S3; NFS; iSCSI; Fibre Channel)

SMB/CIFS, NFS

Number of storage controllers

1 pcs

Number of cluster nodes

1 pcs

Maximum number of storage controller network interfaces

4 pcs

Maximum total speed of the controller interfaces

100

Maximum write speed to the storage system

Maximum read speed from the storage system

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording

Maximum number of drives installed in the storage controller enclosure

6 pcs

Possibility to equip with Ethernet ports (1; 10; 40; 100Gb)

Check, 10/25GB/s

Maximum number of installable disk expansion modules

4 pcs

Hot-swappable drives

Got it

Maximum raw data storage capacity

690

Maximum number of drives to be installed

54 pcs

Maximum capacity of supported SSDs with NVMe interface

3840

Power supply capacity of the power supply installed in the controller enclosure

1200 W

Availability of functionality for remote management of storage hardware components

Got it

Support for block access protocols

Equipment

Controller chassis. Expansion disc module. Power supply cable kit. Telecom rack mounting accessory kit. Product data sheet.

Management platform

Firmware "TATLIN-Backup".

Cooling subsystem

Air

Data storage subsystem

Controller chassis. Expansion disc module.

Power subsystem

220V, alternating current

Available expansion slots

SAS SFF-8644

RAM

Rear I/O panel

Mgmt remote management port (RJ-45), SAS ports for connecting disc expansion module, I/O card (according to specification)

Processors

2 на контроллер

Form factor

In a standard 19" cabinet

Form factor, unit

2U Controller, 2U Expansion Disc Module

Maximum capacity of supported HDD hard disks

16000

Maximum capacity of supported SATA SSDs

3840

Number of power supplies installed in the controller enclosure

2 pcs

Supports data compression function

Armoured glass

Duplication of storage components

Partially (connections, expansion disc module connections, components inside storage controller and expansion module)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
