Wide Metaphyseal Plates US 3.5/5.0 for Joint Fracture Osteosynthesis

Fracture Treatment Devices

Manufacturer: OSTEOMED-M LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Wide metaphyseal plates RS 3,5/5,0, article number 441.513. Wide metaphyseal plates RS 3,5/5,0, article number 441.509. Wide metaphyseal plates RS 3.5/5.0, article number 441.503. Wide metaphyseal plates RS 3,5/5,0, article number 441.508. Wide metaphyseal plates RS 3,5/5,0, article number 441.518.

Wide metaphyseal plates RS 3,5/5,0, article number 441.504 Wide metaphyseal plates RS 3,5/5,0, article number 441.515. Wide metaphyseal plates RS 3,5/5,0, article number 441.517. Wide metaphyseal plates RS 3,5/5,0, article number 441.505.

Description

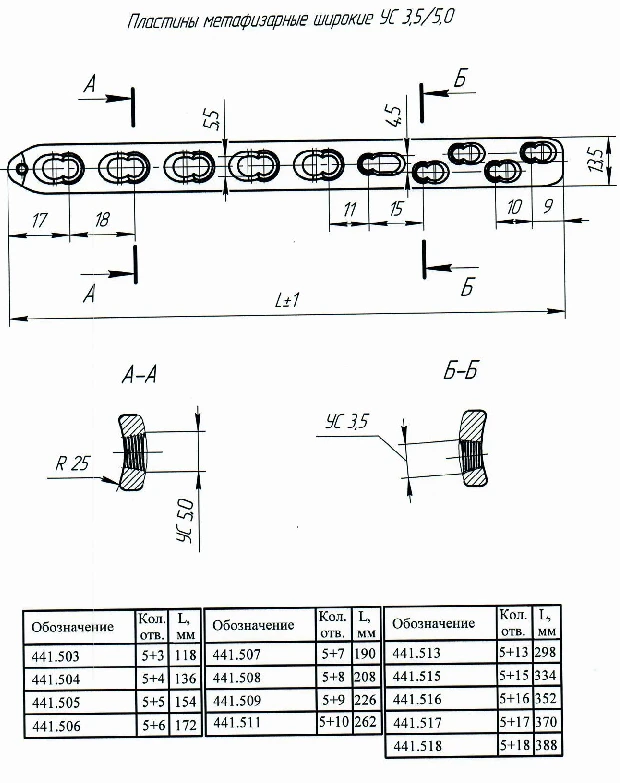

Non-sterile implantable plate made of solid material for osteosynthesis of periarticular fractures extending into the diaphysis. Separate version for right and left limbs. Combined 8-shaped holes for insertion of screws with angular stability, cortical screws without angular stability.

The holes in the metaphyseal portion are staggered. The holes in the diaphyseal part are directed towards the holes in the metaphyseal part. Hole for the spoke.

Limited contact selections along the lower surface of the plate. The edges of the plate are rounded around the perimeter. Tapered taper at the end of the plate.

Laser marking of the article. Sterilisation required before use.

Specifications

Width

13.5 mm

Material

Titanium alloy

Length

352 mm

Diameter of screws with angular stability

3.5 mm

Number of holes in the diaphyseal part

16 pcs

Number of holes in the metaphyseal part

5 pcs

Diameter of the guided spoke

1.5 mm

Form

Straightforward

MRI compatibility

Armoured glass

Sterility

Individual packaging

As required by GOST R ISO 14630-2017

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
