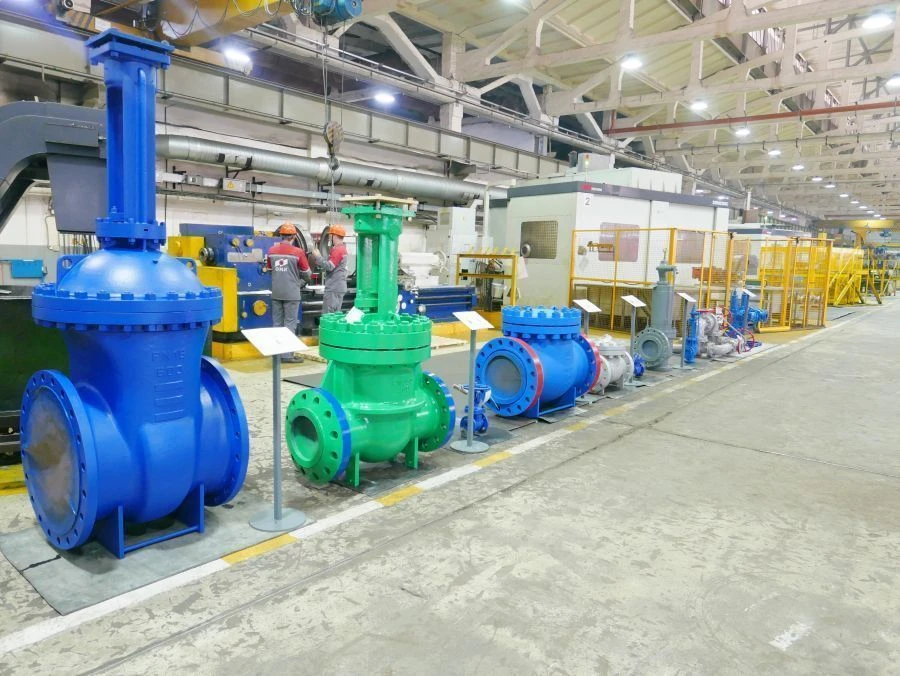

Wedge Gate Valves ZK DN 50-250 PN 1.6-16.0 MPa

Wedge Gate Valves ZK DN 50-250 PN 1.6-16.0 MPa

Brand: BAZ

$900 - $6,000 USD

MOQ: 1 pieces

Key Features

Nominal pressure (PN), MPa (kgf/cm): 16;10;8;6.3;4;2.5;1.6

Nominal diameter (DN): 250 mm

Material of construction of the locking mechanism: carbon steel with cladding, low-alloyed and stainless steels

Type of control: Manual (via handwheel or gearbox), electric actuator

Supplier Information

BAZ OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

More from BAZ

Cast Wedge Gate Valves ZKL2, ZKLP DN50-1400 PN 1.6-25.0 MPa

$90-$900

Automatic Check Valves KOP DN 50-600 PN 1.6-16.0 MPa

$150-$1,800

Wedge Gate Valves ZKL2, ZKLP DN 50-800 PN 1.6-25.0 MPa

$420-$2,400

Wedge Gate Valves ZK DN 50-800 PN 1.6-25.0 MPa

$300-$3,000

Flow Control Switch Device PУ DN 25-400 PN 0.6-25.0 MPa

$900-$3,600

Spring Safety Valves SPPK6 Series DN 25-300 PN 0.6-16.0 MPa

$150-$1,800

Spring Safety Valves SPPK4, SPPK4S, SPPK4R, SPPK4RS, SPPK, SPPKR, SPPK5, SPPK5S, SPPK5R, SPPK5RS, SPPK5RV, SPPK5R

$150-$540

Wedge Gate Valves for Underground and Above-Ground Applications DN 300-700 mm PN 1.6-16.0 MPa

$900-$6,000

Automatic Check Valves ZO DN 50-400 PN 1.6-25.0 MPa

$90-$1,800

Switching Devices PU DN 25-400 PN 0.6-25.0 MPa

$900-$3,600

Safety Valve Blocks with Switching Devices BPU, BPU R, BPU C, BPU RS, BPU RV, BPU RSO, BPU6R, BPU6, BPU6RS

$1,500-$6,000

Automatic Check Valves ZO DN 50-600 PN 1.6-25.0 MPa

$150-$1,800

Description

The wedge gate valves refer to the shut-off devices in which the passage is closed by progressive movement of the shut-off body in the direction perpendicular to the flow of the transported medium

Specifications

Nominal pressure (PN), MPa (kgf/cm)

16;10;8;6.3;4;2.5;1.6

Nominal diameter (DN)

250 mm

Material of construction of the locking mechanism

carbon steel with cladding, low-alloyed and stainless steels

Type of control

Manual (via handwheel or gearbox), electric actuator

Type of seal in the gate

Metal to metal sealant

Type of connection to the pipeline

Combination;Welded;Flanged

Hull molding type

cast

By spindle overlapping method

Retractable

Type of sealing of moving parts against the external environment

gland

Shutter type

Wedge

Gate valve type

Wedge

Maximum torque required to operate the gate valve, no more

2 thousand ct
