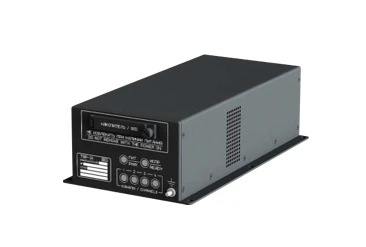

Video and Audio Signal Registration Block TVR-26

Video and Audio Signal Registration Block TVR-26

Brand: TVR

$1,500 - $6,000 USD

MOQ: 1 pieces

Key Features

Dimensions: 150 × 82 × 319 mm

Weight: 1,9 ±0,1 kg

Power consumption: No more than 60 W

?????????????: - Average in-flight MTBF: not less than 10,000 flight hours; - Average MTBF and damage: not less than 5,000 hrs.

Supplier Information

RPKB OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

The TVR-26 registration unit is designed for installation on air, land and surface vehicles and is intended for processing and registration of VGA (XGA, WXGA) video signals and audio signals coming from external devices.

Specifications

Dimensions

150 × 82 × 319 mm

Weight

1,9 ±0,1 kg

Power consumption

No more than 60 W

?????????????

- Average in-flight MTBF: not less than 10,000 flight hours; - Average MTBF and damage: not less than 5,000 hrs.

maximum working height

7600 m (25 000 ft)

Temperatures

- reduced operating: -40°C; - reduced ultimate: -60°C; - increased operating: +55°C; - increased short-term operating: +70°C; - increased ultimate: +85°C.

Information exchange

- video signals VGA (XGA, WXGA) - 4 inputs - audio signals - 1 input - ARINC 646 (Ethernet) - 1 technological channel - RS 232 - 1 technological channel - one-time command "Serviceability" according to RK GOST 18977-79 with logic "body/break", max. RK circ

Electricity supply

Power supply from on-board DC network with nominal voltage 27 V with connection via petrol station. The product retains its functional characteristics at the steady-state value of the mains voltage from 19.0 to 31.5 V. The product is a receiver of electro

Controls

Built-in continuous operation monitoring after power-on, with front-panel LED status indication and one-time "serviceable" command

Registration time

0 to 6h

Continuous operation time

at least 8 hrs

Ready time

no more than - from 1 to 3 min

Capacity of removable SSD drive

At least 240 GB
