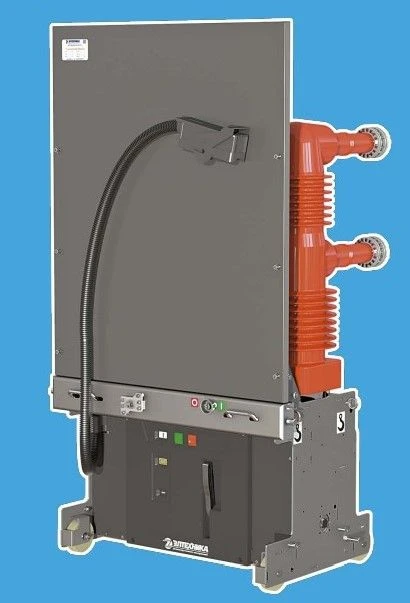

VF40 Vacuum Circuit Breakers for 35 kV AC Networks - Reliable and Efficient Protection

High Voltage AC Switches

Manufacturer:ELTEHNIKA OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Vacuum switches VF40 are designed for operation in three-phase alternating current networks with rated voltage of 35 kV with isolated or earthed neutral through arc suppression reactor or resistor. Overall and connection dimensions of the switches allow not only to install them in complete switchgear (switchgear), produced to date, but also to install them when replacing the circuit breakers that have served their time (retrofit).

Specifications

Width

892 mm

Height

1572 mm

Availability of built-in controls

Armoured glass

Depth

695 mm

Nominal voltage

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kV

Highest operating voltage

40,5 kV

Rated tripping current

20000...31500 A

Rated current

630...2500 A

Normalized parameters of through short-circuit currents: electrodynamic resistance currents

51000...81000 A

Normalized parameters of through short-circuit currents: thermal resistance currents

20000...31500 A

Rated supply voltage for control circuits and auxiliary circuit elements

220 V

Rated current of control circuits of on/off solenoids not more than

1 A

Operating voltage range of control circuits (AC/DC) of the actuation solenoid

70-115 / 85-105 % of Unom %

Operating voltage range of the control circuits (AC/DC) of the trip solenoid

65-120 / 70-110 % of Unom %

Operating voltage range of control circuits (AC/DC) of the power spring cocking motor

85-110 % of Unom %

Mechanical life (number of cycles B-tp-O), not less than

10000 pcs

Switching life (number of cycles ?- tP-O) at rated tripping current, not less than

25 pcs

Service life before decommissioning, not less

30 year

Operating ambient air temperature range

Minus 25 to plus 40° °C

Resistance to seismic effects according to MSK-64 scale

9 points

Weight, not more

300 kg

Mark

VF40

Current type of control coil

Variable/permanent

Block pins

Armoured glass

Poles

The pole body is a die-cast construction made of dielectric materials. A VDC is installed inside the pole. The contact leads of the pole are connected to the corresponding contacts of the VDC.

Drive

The switch actuator is spring-loaded, independently acting, utilising the mechanical energy of a pre-loaded spring. The spring mechanism provides movement of pull rods of movable contacts of VDK with the required characteristics of speed and travel.

Joining

Roll-out

Degree of protection according to GOST 14254-96

IP4X

Control circuit current type

Variable/permanent

Type of climatic version according to GOST 15150-69

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
