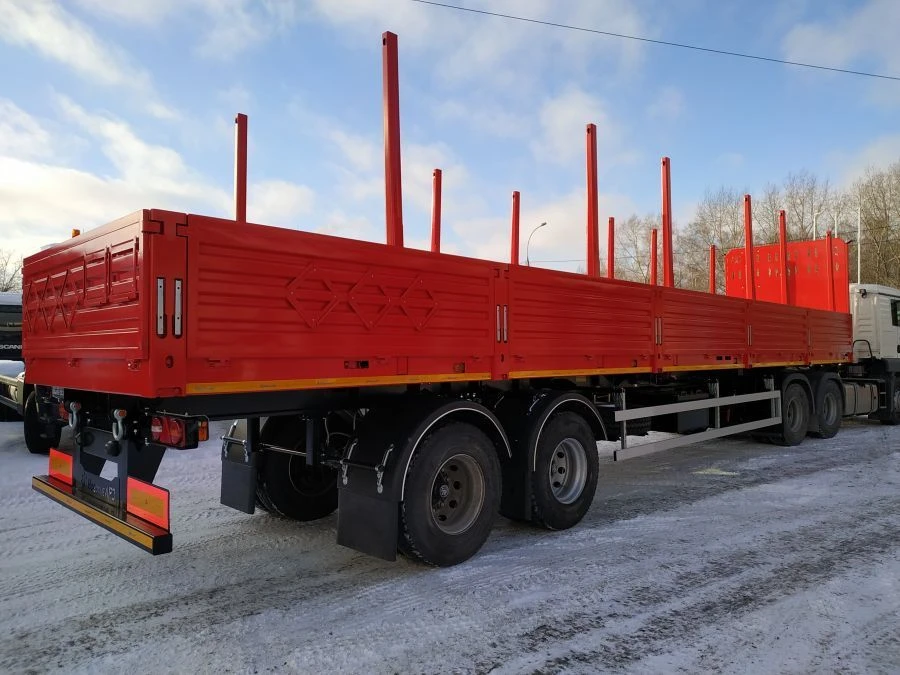

Versatile Trailer for Long Cargo Transport 843441 - Perfect for Various Road Types

Heavy Duty Trailers

Manufacturer:NOVOSIBARZ OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Trailer 843442 Trailer 843441 (loading space design - supporting frame, platform, cones, sides)

Description

The trucks are designed for carriage of assortment and other long cargoes, with installed container locks - containers of various types on roads of all categories of the general road network. Technically permissible maximum weight of the vehicle is 32-40 tonnes. Design of loading space - load-bearing solid or sliding frame with or without all-metal platform, with or without longitudinally movable cones, with or without width-sliding cones, on request: removable sides.

The frame is equipped with cable or belt winches and loops. Drawbar with coupling loop of 50 mm or 57.5 mm diameter. Axles 9 tonnes manufactured by Plant Ltd.

or Axle unit 9 tonnes. BPV-Ost Ltd. Tyres 385/55 R22,5; 385/65 R22,5 manufactured by JSC "Kordiant"/ LLC "Nizhnekamsk Tyre Plant CMK".

Wheel discs manufactured by AccuRide Wheels Russia LLC / PJSC ChKPZ. Receiver manufactured by LLC TD "AUTOTECHNOLOGIA". Lighting equipment manufactured by OOO "Atlanta".

Floor level crane manufactured by VBK Vostok Ltd.

Specifications

Type of trailer

Sorting truck; container truck; flatbed truck

Maximum height

4300 mm

Width

2550...3300 mm

Maximum length

16000 mm

Axle load capacity

8...10 t

Base machine type

truck

Rear track

2000...2050 mm

Front track

2000...2050 mm

Base

1300...1600 + 2500...7500 + 1300...2050

Number of axles

4 pcs

Vehicle kerb weight

6000...16000 kg

Technically permissible maximum mass of the vehicle

32000...40000 kg

Scope of application

Designed for transportation of various cargoes, including assorted and other long cargoes, containers of various types, including tank containers on roads of all categories of the general road network.

Reliability parameters

Average service life before the first major overhaul under the first category of operating conditions in compliance with all operating and maintenance rules specified in the operating manual - not less than 100,000 km; MTBF under the first category of cond

Warranty period

B1/B8 2100/900 MHz

Ergonomic parameters

Paintwork coatings used on the exterior surfaces of trailers may be painted or repainted with natural drying paints; the forces required to lift the spare wheel do not exceed 500 N (50 kgf). When using mechanisms

Climatic version

UHL

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
