Vehicle Weighing Scale VAL-60-18/3 (2Z/8;1)

Available for Import

Vehicle Weighing Scale VAL-60-18/3 for Static Weighing Applications

Vehicle Weighing Scales

Manufacturer:Volgograd Weighing Equipment Plant LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Automotive scales are designed for static weighing of motor vehicles. Scales are widely used in all areas of industry, agriculture, construction, warehouses and logistics companies, mining, processing and receiving raw materials. Structurally, the scales are an orthotropic construction made of channel 27U reinforced with ribs of transverse channel 27U and ribs of transverse sheet 6 mm.

Coating of the scales platforms is carried out by steel sheet with lentil corrugation from 5 mm to 10 mm depending on the conditions of application of the scales by the Customer. Before painting the platforms are sandblasted. Modular design allows to install the scales quickly, simplifies equipment delivery, allows to quickly move the scales to another place of installation.

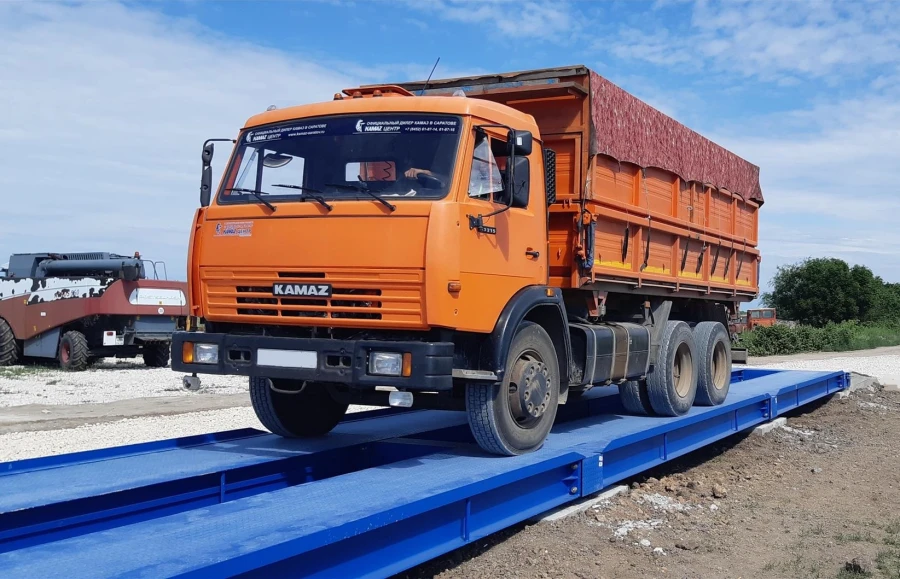

The width of each of the two parallel sections of the scales (110 cm) provides a comfortable passage of the car on the scales.

Specifications

Minimum operating temperature

30 °C

Maximum operating temperature

40 °C

Maximum value of the measuring range of the total mass of the vehicle *N× , where N - number of axles of the vehicle not less th

60000 kg

Minimum value of the measuring range of the total mass of the vehicle *N× , where N - number of axles of the vehicle at least 2

200 kg

AC mains power supply to the scales - Supply voltage

187 to 242 V

AC mains power supply - Power frequency

49 to 51

Power consumption

no more than 20

Power supply of scales from the built-in battery - Voltage supply from the battery

6 V

Continuous operating time from a fully charged battery pack

not less than 36

Number of weighing sensors

8 pcs

Valid division price for dual range terminal (d1/d2)

10/20 kg

Average service life of scales

15 year

Weighing time

Continuous operation time

Not limited

Remoteness of weighing terminal from weighing platform

SBVVBG m

Permissible short-time overload

25 %

Degree of dust and moisture protection of sensors

IP68

Thickness of top cover of scales

6 mm

Maximum axle load

21000 kg

Accuracy classes according to GOST OIML R 76-1-2011

Limit of total relative error, not more than

0.05 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
