Vega Series LED Light Fixtures LE-SPP-74 for Dusty Workspaces

LED Ceiling & Wall Lights

Manufacturer:LED-EFFECT LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

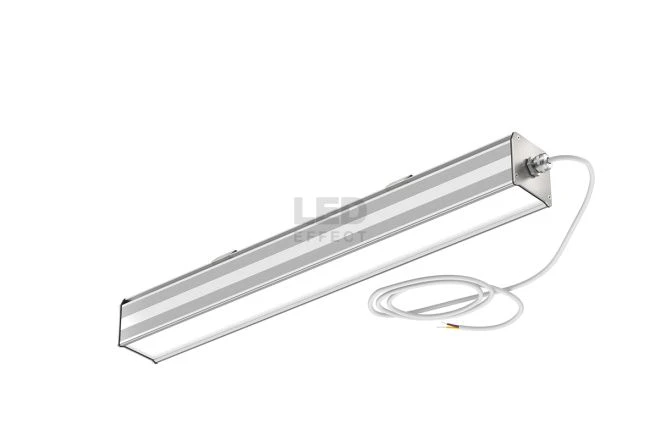

Luminaires with diffusers made of tempered glass, transparent or opal. Designed for use in workshops with high dust content in the air. Tempered glass facilitates maintenance (cleaning) of the luminaire.

Thought-out design of heat sink guarantees preservation of the stated characteristics and trouble-free operation of the luminaire. Competent design of the fixing unit allows suspended (using ropes or chains) or surface-mounted installation. The colour of the housing is grey.

Body material - aluminium. Material of the diffuser - tempered glass. Cables and chains are not supplied.

Specifications

Type of luminaire

Universal

Correlated color temperature, min

2700...6500 K

Power

10...60 W

Luminous flux

1600...9600 lm

Dimmable luminaire

Armoured glass

Form

Rectangular

Power factor

0.95

Color rendering index

70...90

Ripple factor

1 %

Net weight

2...5 kg

Gross weight

2.4...5.5 kg

Luminaire length

1555 mm

Luminaire width

71 mm

Protection class against electric current

Luminaire height

80 mm

Correlated color temperature, max

6500...2700 K

Explosion-proof

Armoured glass

Diffuser material

Glass

Luminaire body material

Aluminum

Net weight

1.1...4.3 kg

Type of luminaire

Rectangular

Luminaire length

350...2170 mm

The first characteristic digit of the degree of protection designation, not less than

Second characteristic digit of the degree of protection designation, not less than

Type of lamps (LED, incandescent, fluorescent)

ice

Type of supply current

Upper operating temperature value

SBVVBG °C

IK code

Light distribution class

Color temperature (K)

2700...5700 K

PROTECTION CLASS AGAINST ELECTRIC CURRENT NUMERICAL VALUE!!!!!!!!!!!!!!!!!!!!!!

Weight

1.1...4.3 kg

Optical element material

tempered glass

Climatic execution (according to GOST 15150-69)

UHL3.1

Color rendering index (CRI)

70...90

Housing material

Aluminum

Width

71 mm

Length

350...2170 mm

Luminous flux, lm

1400...9000 lm

Height

80 mm

Power consumption, W

12...85 W

PROTECTION CLASS AGAINST ELECTRIC CURRENT

Ripple factor, less than or equal to

5 %

Color rendering index (Ra), greater than or equal to

70-90

Degree of protection

Double angle half brightness

120

Power factor, greater than or equal to

0.95

Degree of protection (IP)

Degree of protection against dust and moisture (according to GOST R IEC 60598-1-2011)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
