Vacuum Circuit Breaker Rec15_Smart for Reliable Protection in Power Systems
Manufacturer:
Tavrida Electric LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

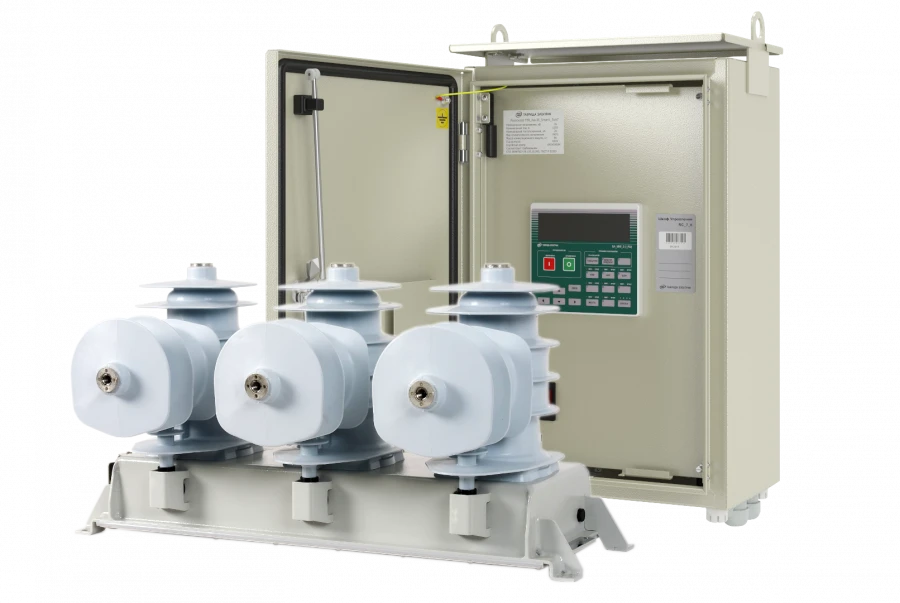

Vacuum switch (recloser) Rec15Smart for rated voltage 6(10) kV, rated currents up to 630 A, rated tripping currents up to 16 kA, climatic version UHL, placement category 1, consisting of switching module OSM15Smart three-pole version with phase electromagnetic actuators and control cabinet RC7 with control module CM_15 series as built-in protection device, automation, control and monitoring designed for switching of electric circuits in normal and emergency modes in three-phase alternating current networks with frequency 50 Hz with isolated, compensated and earthed neutral.
Recloser can be used for automation of power lines, retrofit or new construction as a part of open switchgears of outdoor installation at substations of distribution complex, as well as for sectionalisation of power lines intended for power supply to non-tractor power consumers, and......
Recloser can be used for automation of power lines, retrofit or new construction as a part of open switchgears of outdoor installation at substations of distribution complex, as well as for sectionalisation of power lines intended for power supply to non-tractor power consumers, and......
Specifications
Warranty period of operation
7 years
Control cabinet weight
27 kg
Weight of the switching module
34 kg
Overall and connection dimensions (WxHxH) of the control cabinet
545×740×300 mm
Overall connection dimensions (WxHxH) of the switching module
705x365x435 mm
Enclosure protection degree according to GOST 14254 of the control cabinet
IP54
Enclosure protection degree according to GOST 14254 of the switching module
IP65
Permissible supply voltage range (DC/AC)
85...265 V
Degree of contamination according to GOST 9920
IV
Climatic execution and placement category according to GOST 15150
UHL1
Mechanical resistance life, cycles "HE"
30000
Electrodynamic resistance current (highest peak)
40000 A
Thermal resistance current flow time
3
Thermal resistance current (RMS value of current during its flow time)
16000 A
Rated tripping current
16000 A
Rated current
630 A
Insulation level according to GOST 1516.3
6
Highest operating voltage
B1/B8 2100/900 MHz kV
Nominal voltage
10 kV
Type of arc suppression medium
Vacuum
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
