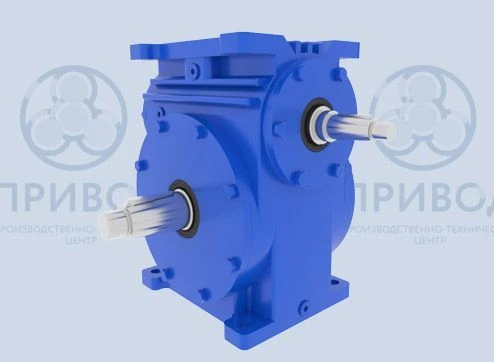

Universal Worm Gear Reducers CH-100, CH-125, CH-160 for Machinery Applications

Single-stage worm gearboxes, type Ch-100,Ch-125,Ch-160, are designed to increase the torque and reduce the frequency of rotation. torque and reduce the speed of rotation as components in the drives of machines, equipment and mechanisms. Conditions of application: constant and variable load, single direction and reversible; operation with periodic stops and continuous operation up to 24 hours a day; shaft rotation in any direction; input shaft speed not exceeding 1800 rpm; external environment - non-aggressive, non-explosive; atmosphere of types I and II according to GOST 15150-69 with air dustiness not more than 10 mg/m3; climatic versions U,T (for categories of placement 1 ...3) and climatic versions UHL and O (for categories of placement 4) according to GOST 15150-69. Unit designation Ch-100-40-51-2-2-2-KC-U3-V or Ch-160-20-52-3-5-KC1-T, where: Ch - gearbox type; 100 and 160 - centre-to-centre distance, mm; 40 and 20 - nominal gear ratio; 51 and 52 - assembly design variant; 2 and 3 - mounting variant; 2 and 5...
