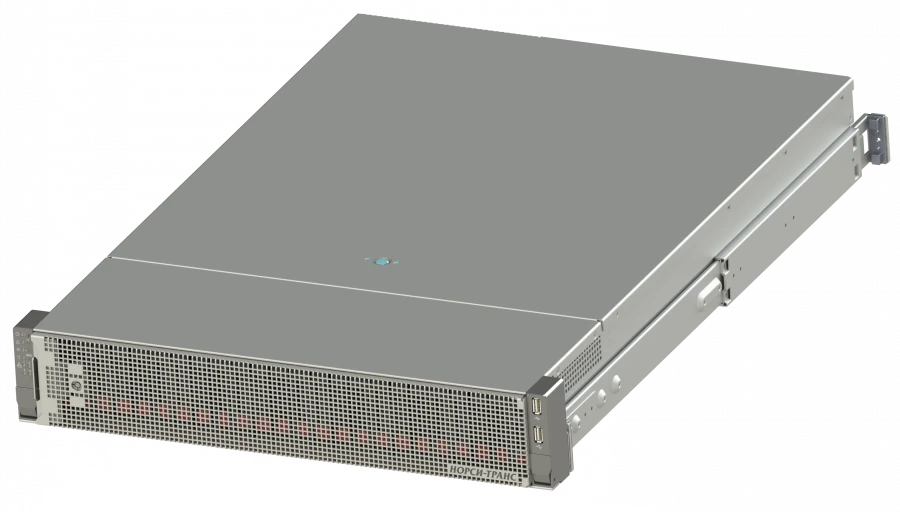

Universal server on Elbrus platform "Yakhont-UVM E24SFF" (NIKA.466533.277-01)
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Server based on the dual-processor platform "Elbrus". Elbrus-8SV processors act as the central processors of the platform. The product can be used to build IT-infrastructure and dedicated placement of applications and services, as well as a server for security, management, e-mail, electronic document management and data storage. It is possible to connect existing FC infrastructures and disc shelves to create data processing systems under the control of Russian equipment, as well as to use it as part of clusters for parallel and fault-tolerant computing. The enclosure design provides the possibility of installing 24 hot-swappable 2'5 (SFF) discs. The enclosure is equipped with a protection system against unauthorised access to the internal space (front panel and enclosure cover tampering sensors). It is possible to change the server configuration by using different expansion cards.
Technical Specifications
| Maximum total supported RAM capacity | 64 |
|---|---|
| Maximum number of processors | 2 pc |
| Server type | rack |
| Number of installed processors | 2 pc |
| Number of cores of each installed processor | 8 pc |
| Number of slots for RAM modules | 8 pc |
| Maximum number of drives per enclosure | 24 pc |
| Number of SFF (2.5) drive slots on the front panel | 24 pc |
| Number of SFF (2.5) drive slots on the rear panel | 2 pc |
| Availability of rails for installation in the telecommunication cabinet | In stock |
| Housing type | Rack-mounted, height 2U |
| Protective safety panel | In stock |
| Dedicated port for remote server management | In stock |
| Remote server management system | Present |
| Availability of an integrated video adapter | In stock |
| Number of occupied units in the rack | 2 |
| Supported drive interface | SAS/SATA |
| RAID types supported by the disk controller | 0, 1, 5, 6, 10, 50, 60 |
| Number of USB 2.0 ports | 4 |
| USB port layout type | on frontal side: 2 pcs; on back side 2 pcs. |
| Location type RS-232 | at the back |
| Optical drive | absent |
| Redundancy level of installed power supplies | N+1 |
| Number of processor cores | 8 pc |
| Number of power supplies installed | 2 pc |
| Number of hot-swappable power supplies installed | 2 pc |
| Full power of one power supply unit | 1000 |
| Number of Ethernet network ports | 2 pc |
| Ethernet network port speed | 10 |
| Type of product according to PP RF 616 | Computational electronic digital machines, supplied as systems for automatic data processing |
| Cooling subsystem | Air |
| Power subsystem | 220 V, Redundancy level N+1 |
| Case Form Factor | Rack-mounted, height 2U |
| Connection interface | Data transmission: 10/100/1000 Base-T RJ-45 connector x 2pcs; Remote control: 10/100 Base-T RJ-45 connector x 1pcs. |
| Internal power supply | 1000 W |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
