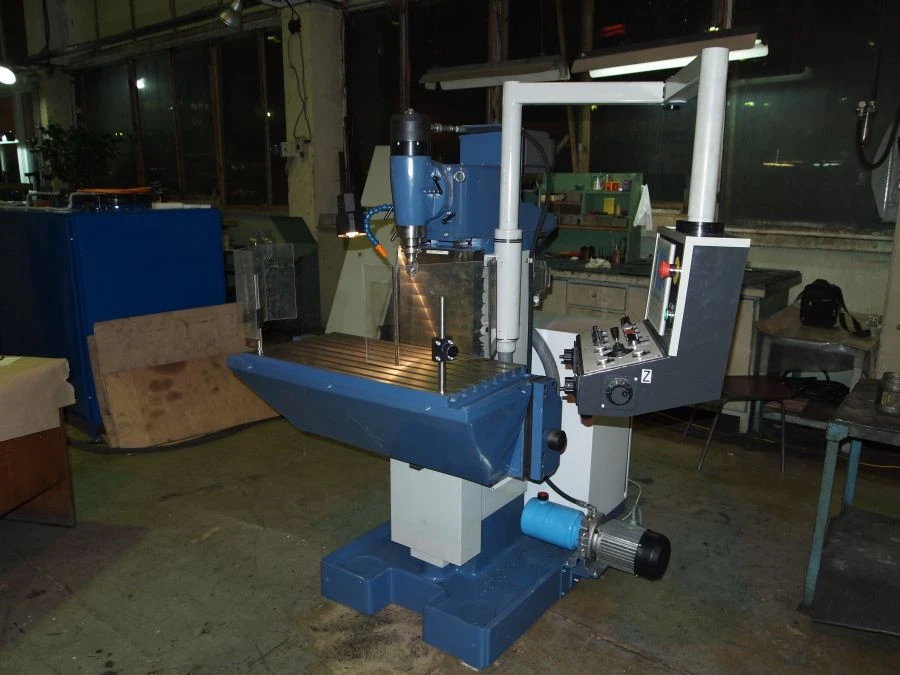

Universal Milling Machine with FANUC CNC FS-300-06R-1 for Precision Machining

Accuracy class according to GOST 8-82 P
Dimensions of the working surface of the fixed angle table, mm 350x630
Main motion drive motor power, kW 7, 5
Horizontal spindle speed range, rpm 15-3000
Vertical spindle speed range, rpm 15-3000
Type of CNC - OI-MF FANUC Spindle cone 40AT5
Feed range, mm/min 10-5000
Overall dimensions of the machine (length, width, height), mm 1420x1400x1905
Machine weight, kg 1000
