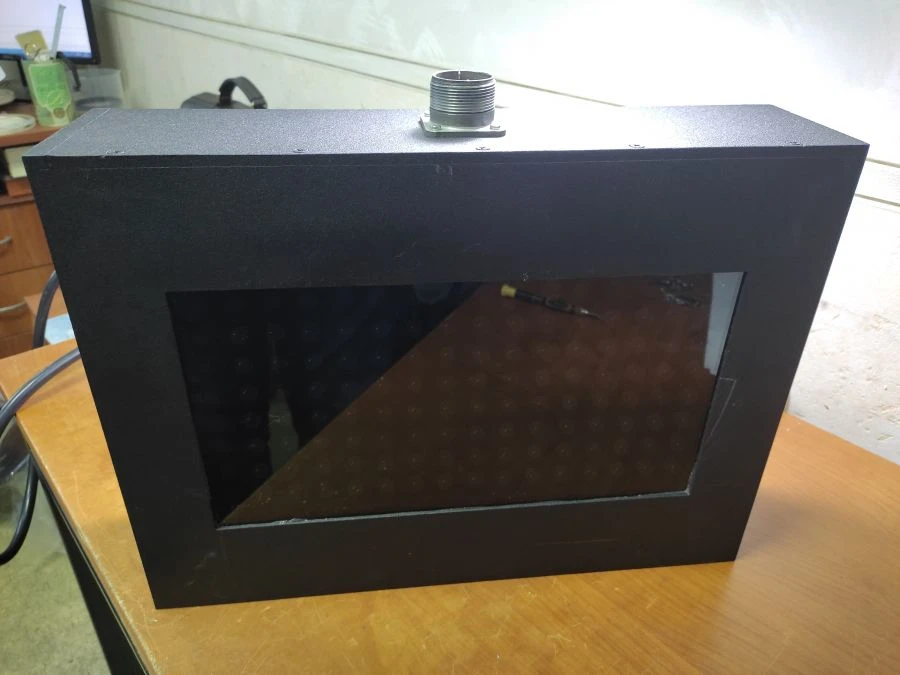

Universal LED Route Indicator with White Illumination (SMU-UB) for Safe Navigation

LED route indicator universal with white glow (hereinafter referred to as SMU-UB) is designed for indication and transmission of information to drivers about the established movement. The product is designed for operation on urban rail transport. Main technical characteristics of SMU-UB: overall dimensions (HxShxG) 312x420x100 mm; installation dimensions 240x340 mm - 4 holes M10; weight of the product is not more than 9,0 kg; power supply from AC network with voltage 20...60 V, 0,5 A, 50 Hz; colour of LEDs luminescence - white; size of LED board: 153 x 312 mm; number of LEDs on the LED board: 8 x 16 = 128 pcs.

Advantages: Reliable design - durable aluminium housing. Wide temperature range of the product: from -25? to +45 ?.

The ability to quickly change the set of reproduced symbols without changing the design of the product (requires a service call). Low power consumption of the product in the operating mode, no more than 2.0 W.
