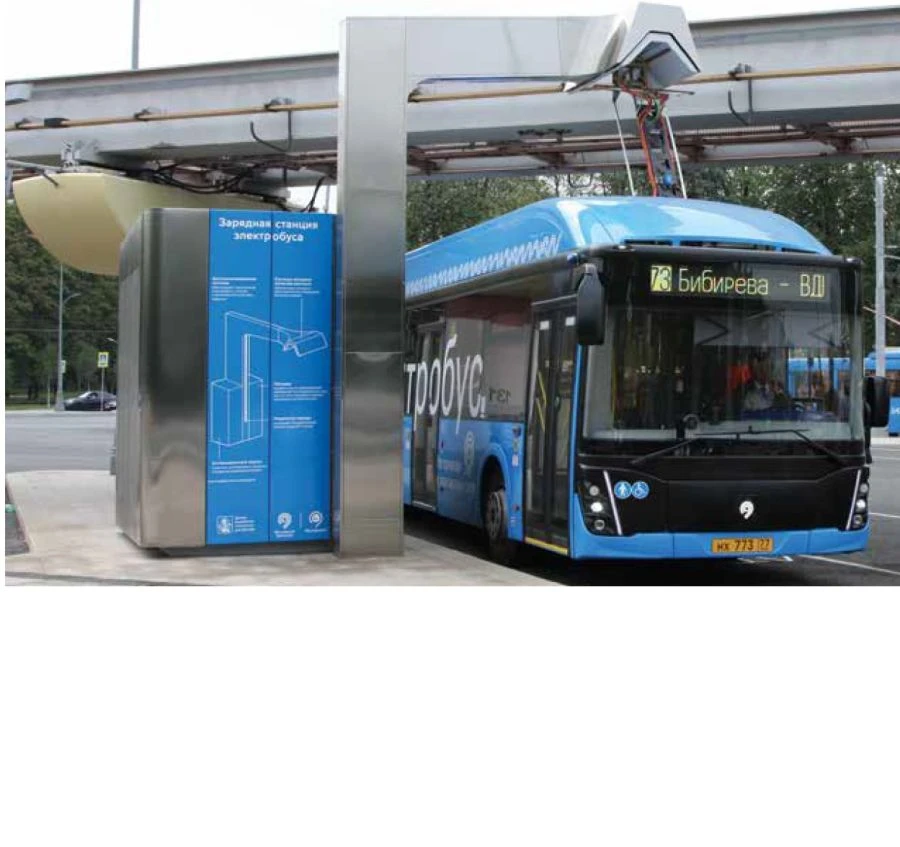

Ultra-Fast Electric Bus Charging Station ZSE-500T(P) for Quick and Efficient Charging

Electrical Interface Devices

Manufacturer:ENERGIYA OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The fast charging station of ZSE-500T(P) type is designed for ultra-fast charging of electric buses. The design solution provides connection of the device both from the existing city traction electric network with nominal voltage of 600 V DC (T) and from three-phase AC distribution network of low voltage level 0,4 kV (P). Availability of several design variants considerably simplifies installation and commissioning of the device. Each ZSE-500T(P) is equipped with automatic control and safety systems with devices for disconnection of high-voltage circuits in case of violation of permissible charging parameters and short circuit. The control interface is made on a colour LCD screen.

Specifications

Voltage of supplying traction (T) network

300...720 V

Alternating (P) current distribution network supply voltage

340...420 V

AC mains frequency

SBVVBG

Output voltage range

380...720 V

Output current range

10...500 A

Output current setting accuracy

10 %

Rated power

300 kW

efficiency, at least

95 %

Minimum utilised energy capacity (UEC) of BTA, not less

70000

BTA charging mode

continuous

Rated voltage of control circuits, heating, cooling converters, ventilation grille drives, lighting and signalling circuits, vol

220 V

Network frequency of control circuits, heating, cooling converters, ventilation grille drives, lighting and external lighting

SBVVBG

Rated voltage of automatic circuits, direct current

24 V

Rated voltage of current and voltage sensor circuits, direct current

15 V

Rated voltage of fire alarm circuits, direct current

B1/B8 2100/900 MHz V

Cooling

Forced air

ZS control scheme

Microprocessor

Climatic version and placement category

Operating limits of ambient air temperature

-40...40 °C

Permissible height of operation of the sounder

Up to 1500 metres above sea level

Noise level, max.

Degree of protection

IP54, IK-10

Facing material for centre console and support

stainless steel

Width

2395 mm

Height

2400 mm

Depth

1700 mm

Width

2460 mm

Height

3000 mm

Depth

1720 mm

Width

3930 mm

Height

400 mm

Depth

2440 mm

Overall dimensions of the support with contact dome

Depending on the location of the sounder

Height between the contact surface of the contact tyre and the carriageway, mm

4600 +/-100

Weight, not more

18000 kg

?????????????? ???-500?(?)

Compatible

Current transmitting device

Schunk SLS 101

ZSE-500T(P) electric bus communication system

ISO 15118 PLC interface standard protocol communication channel

Backup communication channel ZSE-500T(P) with electric bus

Wi-Fi

Communication with higher level systems

2 channels GSM, Modbus TCP

Ventilation system

availability

Heating system

availability

Fire extinguishing system

availability

Protection against lightning

availability

Service life, at least

15 year

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
