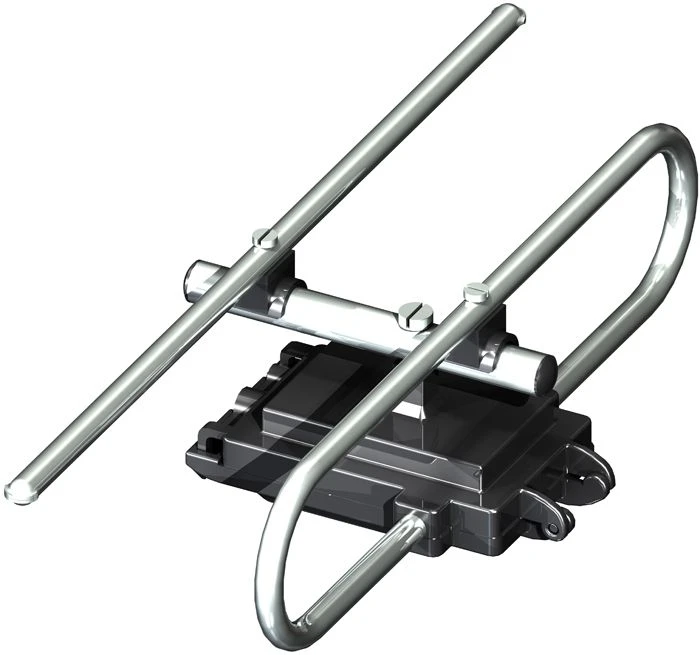

UHF TV Antenna for Digital Broadcasting DELTA K1133A - Ideal for DVB-T2 Reception

Antenna Equipment & Parts

Manufacturer: CJSC NPP OST

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for receiving television programmes in the DMV range (21-60 TV channels) of digital television broadcasting on a TV set with a digital tuner DVB-T2 or through a digital set-top box DVB-T2.

It is designed for operation in the temperature range from 5 to 35?? and the limit value of relative humidity of 80% at 25??.

The antenna is equipped with an amplifier that provides compensation of signal attenuation in the antenna cable and improves the quality of reception of weak signals. The +5V supply voltage is supplied to the amplifier through the antenna cable from the source built into the digital set-top box DVB-T2..

Specifications

Type by orientation

Directed

View

television

Type

decimeter range

Internal antenna type

room

Reinforcement type

Active

Type by received frequency range

decimeter

Maximum value of the operating radio frequency range

790

Input impedance

75 ohm

Received signals

470-790

Gain factor

Maximum operating temperature

30 °C

Minimum operating temperature

5 °C

Standing wave coefficient (VSWR)

Connector

Equipment

Antenna with 3 m cable

Weight

0.2 kg

Polarization

Horizontal

Power supply voltage

5 V

Mark

Delta

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
