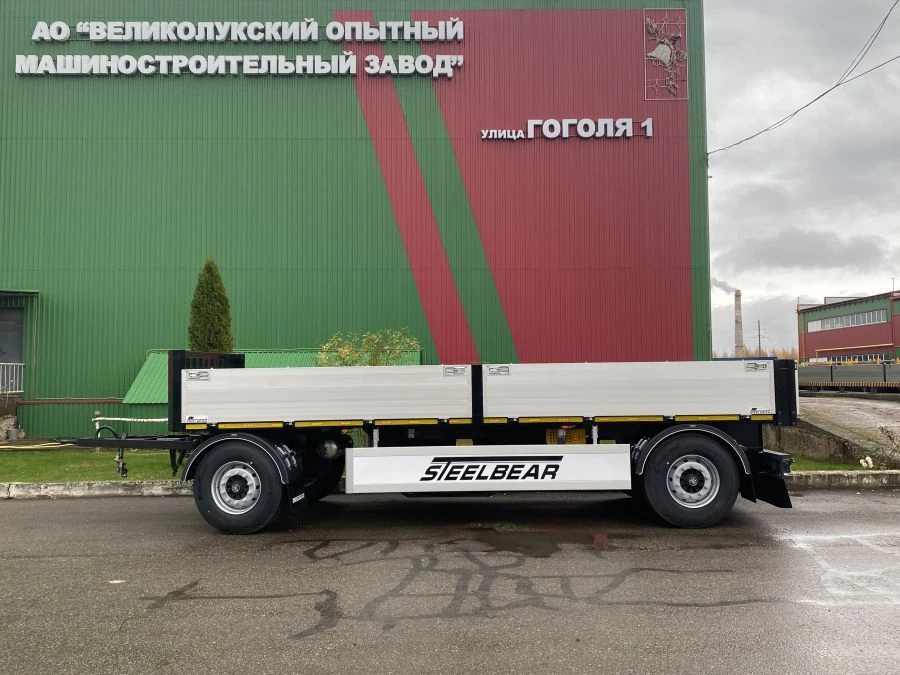

Two-Axle Side Trailer Model 9412R PR-18B for Heavy Load Transportation

The flatbed trailer is a platform with or without side and rear flaps, with or without gangways. Reinforced chassis made of two longitudinal members of I-beam section connected by cross beams (for difficult road conditions). The frame structure is made of high-strength steel.

Reinforced drawbar, centrally mounted with silent blocks; Front bogie welded, connected to the chassis via reinforced slewing ring; Central lubrication system for the slewing ring; Floor made of 27 mm thick laminated multilayer birch plywood, grooved surface; Fixing rings built into the floor for load securing; Front steel wall 800 mm; Pneumatic and electric connectors at a height of approx. 600 mm from the fifth wheel. Rear wall made of anodised aluminium, approx.

600 mm high; 3 complete ties on the wall (from the base of the hinge to the upper plane of the wall); Side walls on the left and right approx. 600 mm high made of anodised aluminium.
